NYX 190 Wall

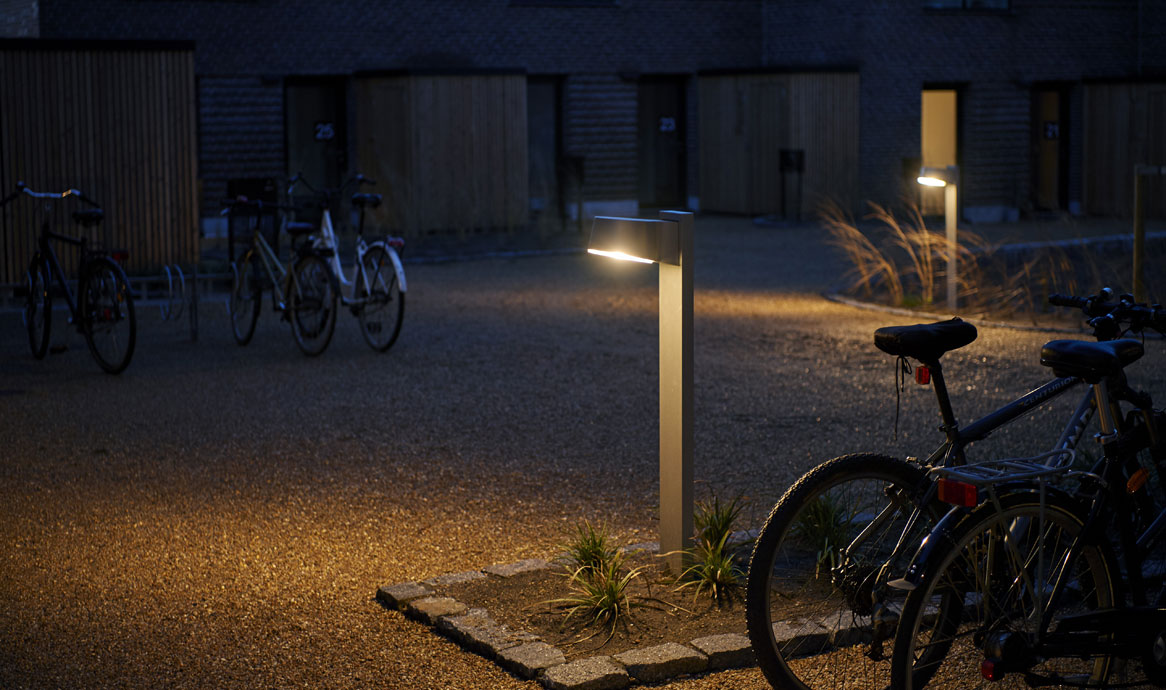

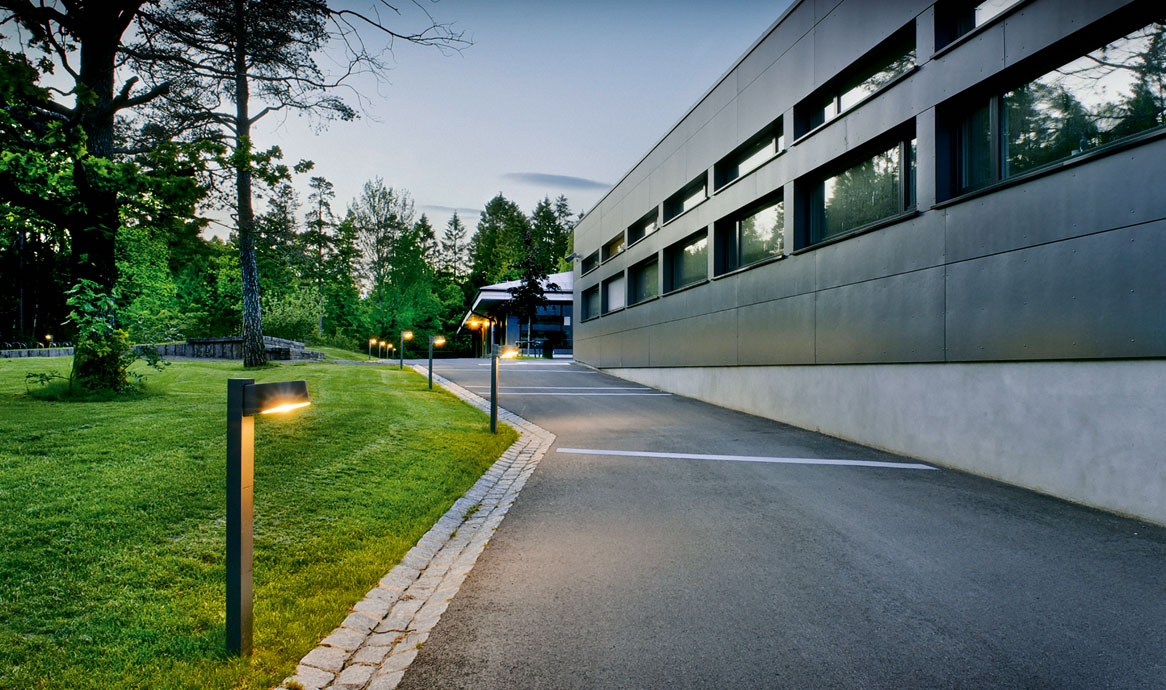

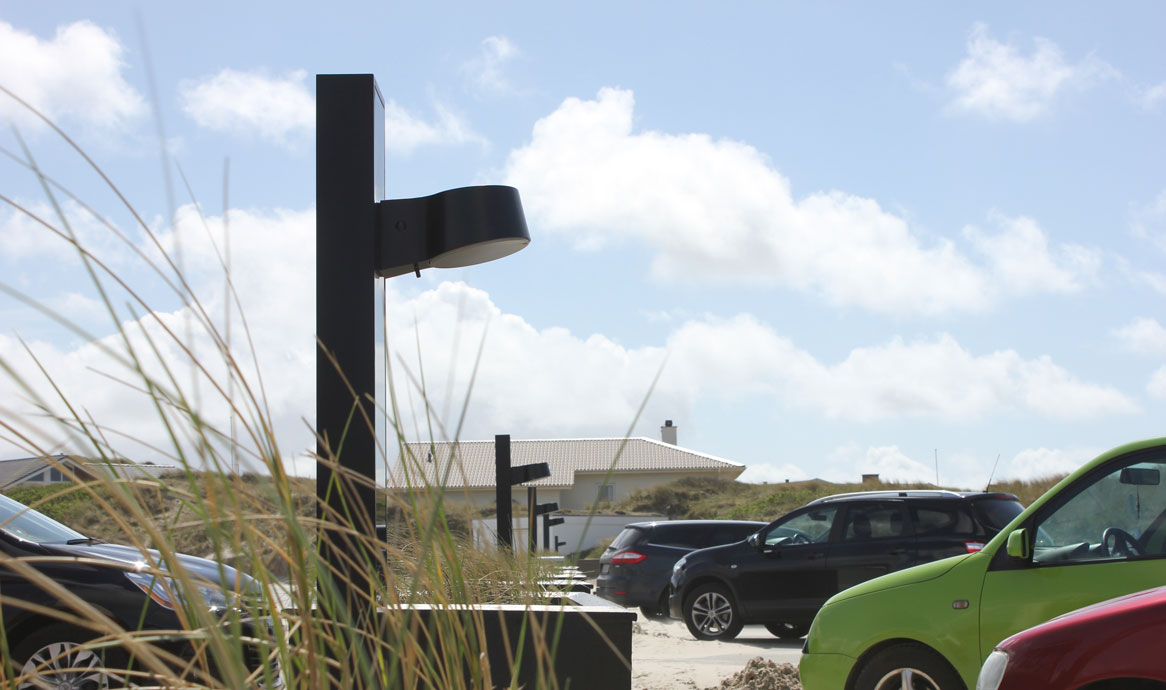

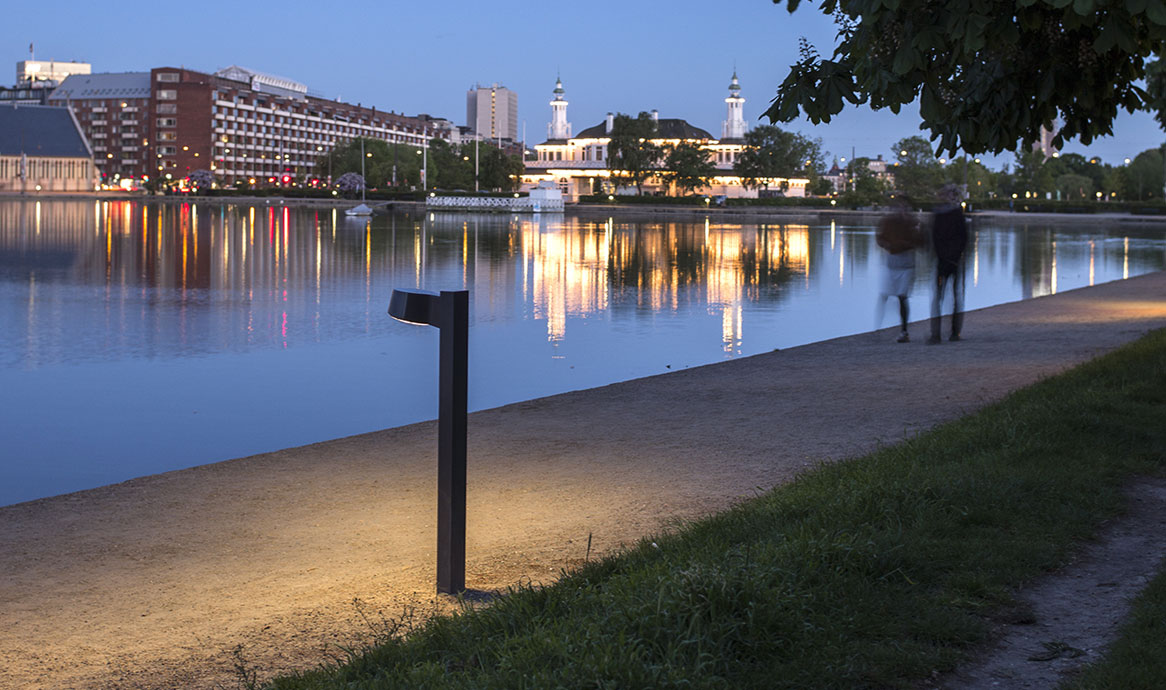

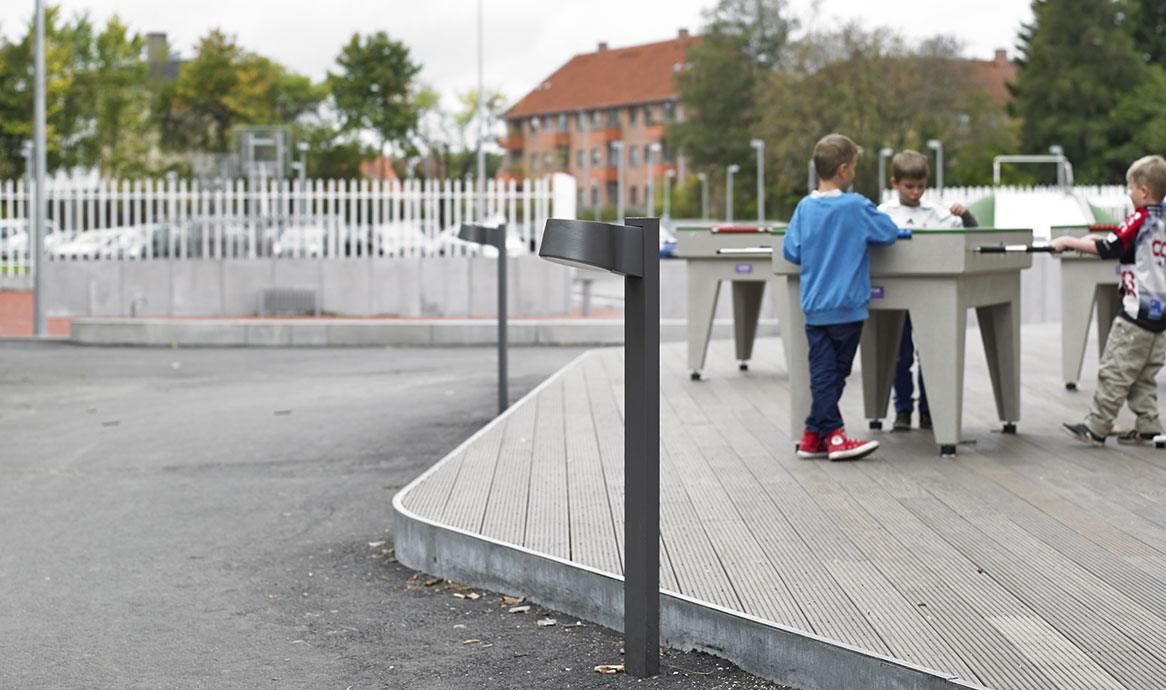

Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

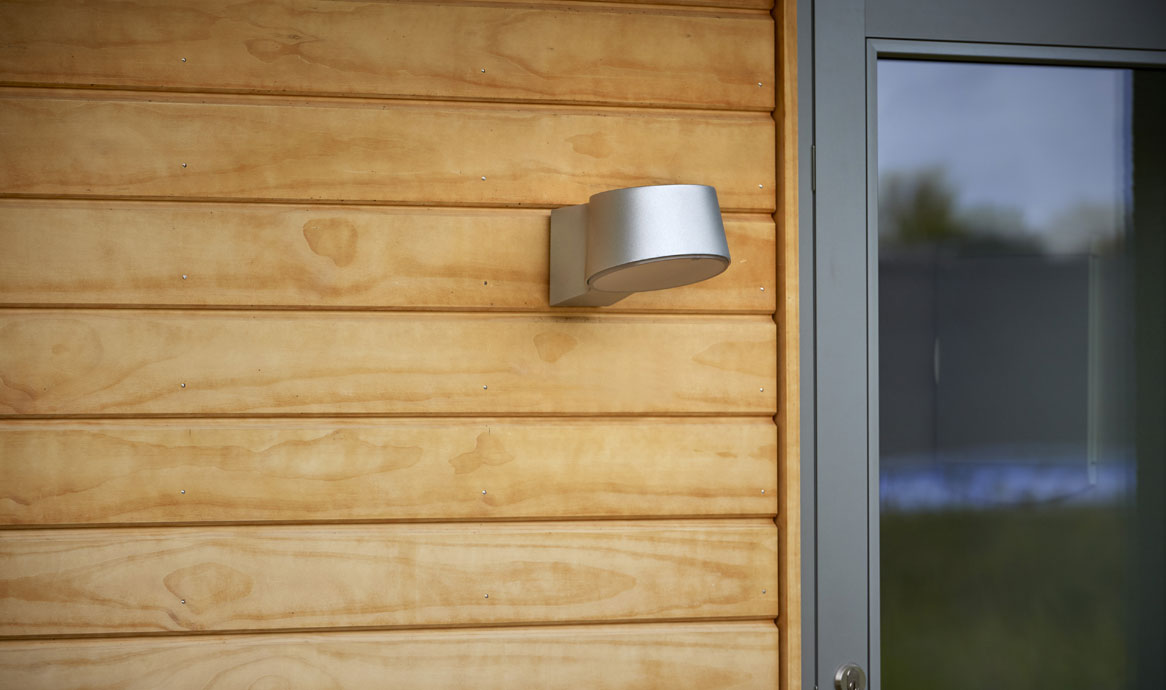

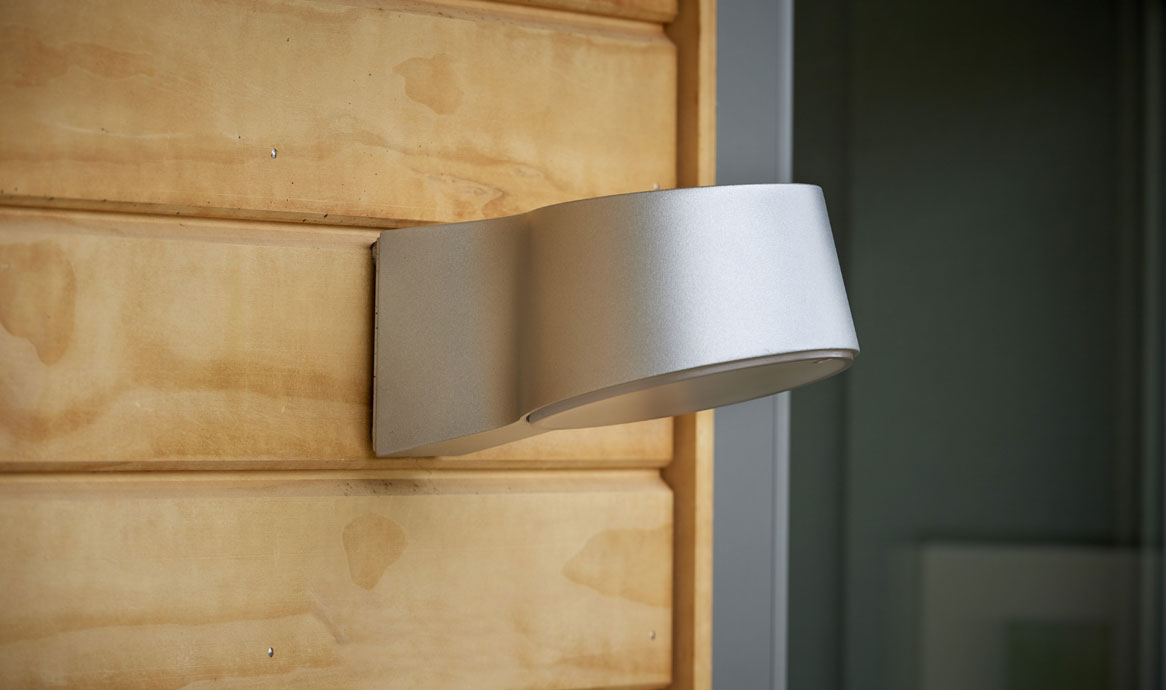

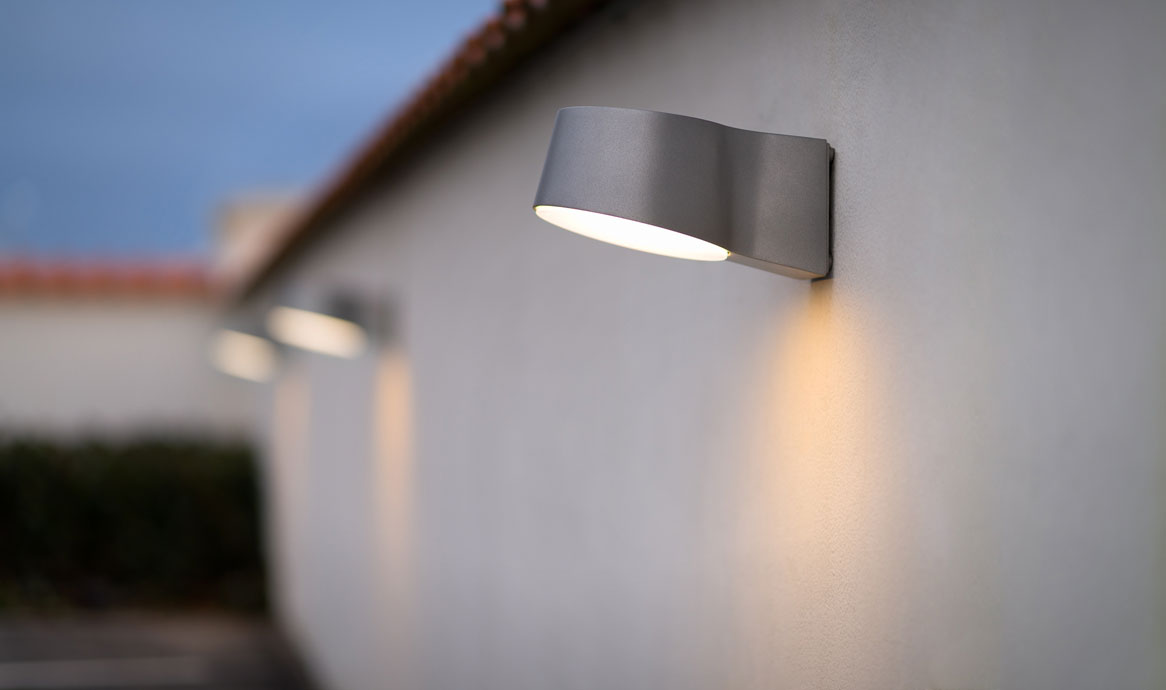

The Nyx 190 fitting can be mounted on wall or bollard.
Specifications
NYX 190 Wall
Luminaire
| NYX 190 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | UV-resistant polycarbonate, frosted opal white |
| Mounting | On wall |
| Connection | In the wall box, 5 x single core AWG18-cables are included |
| Classification | cULus; Wet location; IP66; class I; IK10 |
| Corrosion class | C4, C5 optional |
| Weight | 5,73 lbs |
| Wind sweeping area |
LED and driver data
| LED type | Bridgelux COB |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Color temperature | 2700, 3000, or 4000 Kelvin |
| Color rendering | min 90 CRI |
| Color accuracy | 3 steps SDCM |
| Driver | Xitanium 25W 0.1-1.0A 0-10V |
|---|---|
| Inrush current | @120V; max 10 A (10% after 62 µs) |
| @270V; max 26 A (10% after 73 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 108-305 Vac |
| Nominal voltage, DC | |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 2,5 k; L-N: 2,5 kV |
| Operational life | min 50,000 hours |
| Dimming/control | 0-10V |
| Other control options |
