DUA BOLLARD

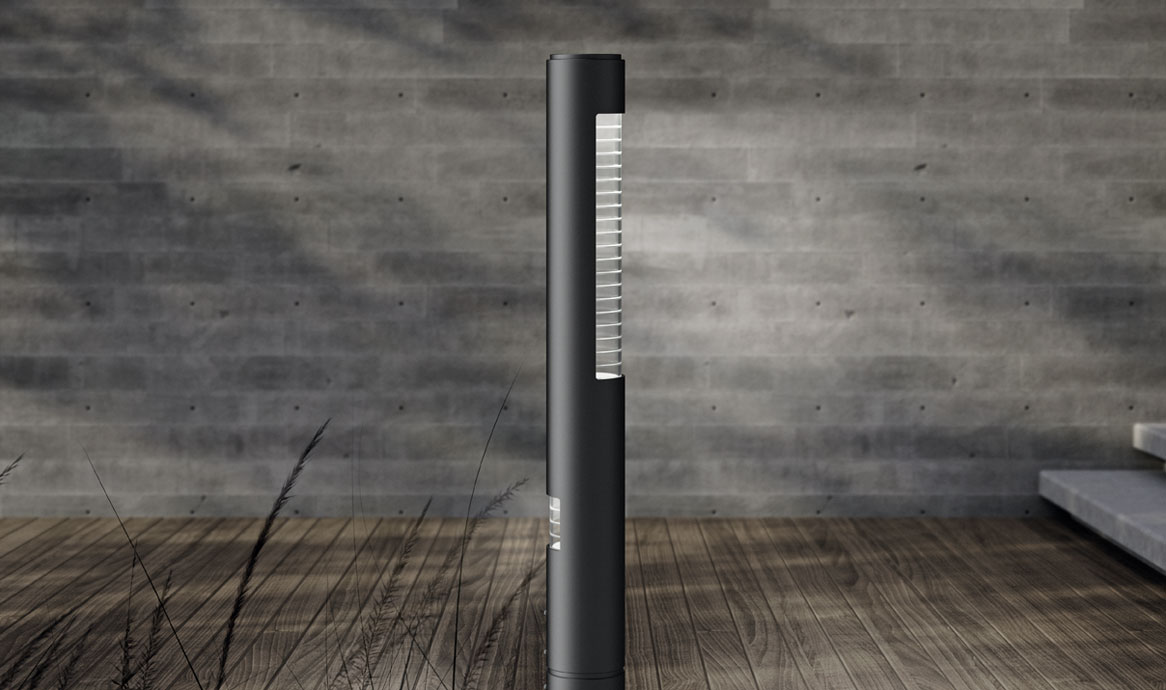

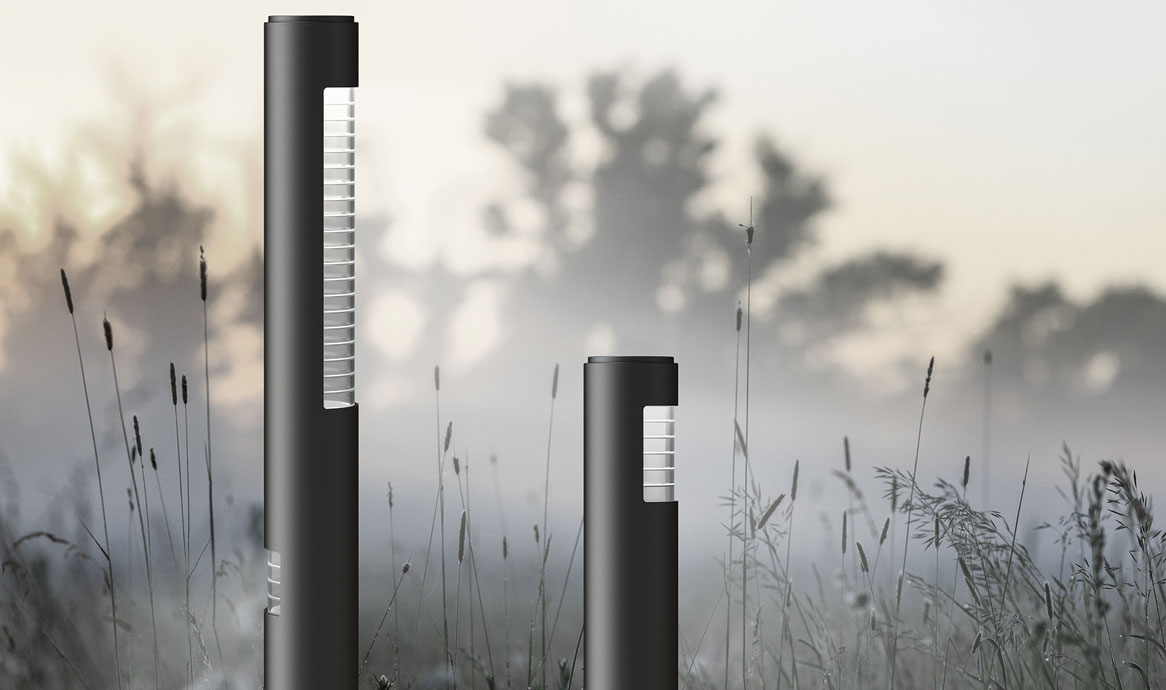

Dua Bollard is minimalistic and yet characteristic in its slim and asymmetrical design. The two light sources combine primary light with glowing light on the surroundings.
Specifications
DUA BOLLARD
Luminaire
| DUA BOLLARD | |
|---|---|
| Material | Aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Screen | Tube with inside spinned grooves, UV-resistant polycarbonate |
| Mounting | Flanged base |
| Connection | In the post, SJTW5xAWG18, is included |
| Classification | cULus; Wet location; IP65; class I; IK10 |
| Corrosion class | C4, C5 optional |
| Weight | 18 lbs |
LED and driver
| LED type | 2 x Bridgelux COB |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25° C), L90B10 |
| Color temperature | 2700, 3000 or 4000 Kelvin |
| Color rendering | min 90 Ra, 3000 K, with R9 = 72 |
| Color accuracy | 3 steps SDCM |
| Driver | Xitanium 25W 0.1-1.0A 0-10V INT |
|---|---|
| Inrush current | @120V; max 10 A (10% after 62 µs) |
| @277V; max 26 A (10% after 73 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 108-305 Vac |
| Nominal voltage, DC | |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 2,5 k; L-N: 2,5 kV |
| Operational life | min 50,000 hours |
| Dimming/Control | 0-10V |
