WAY side entry T4
"Showing the Way"

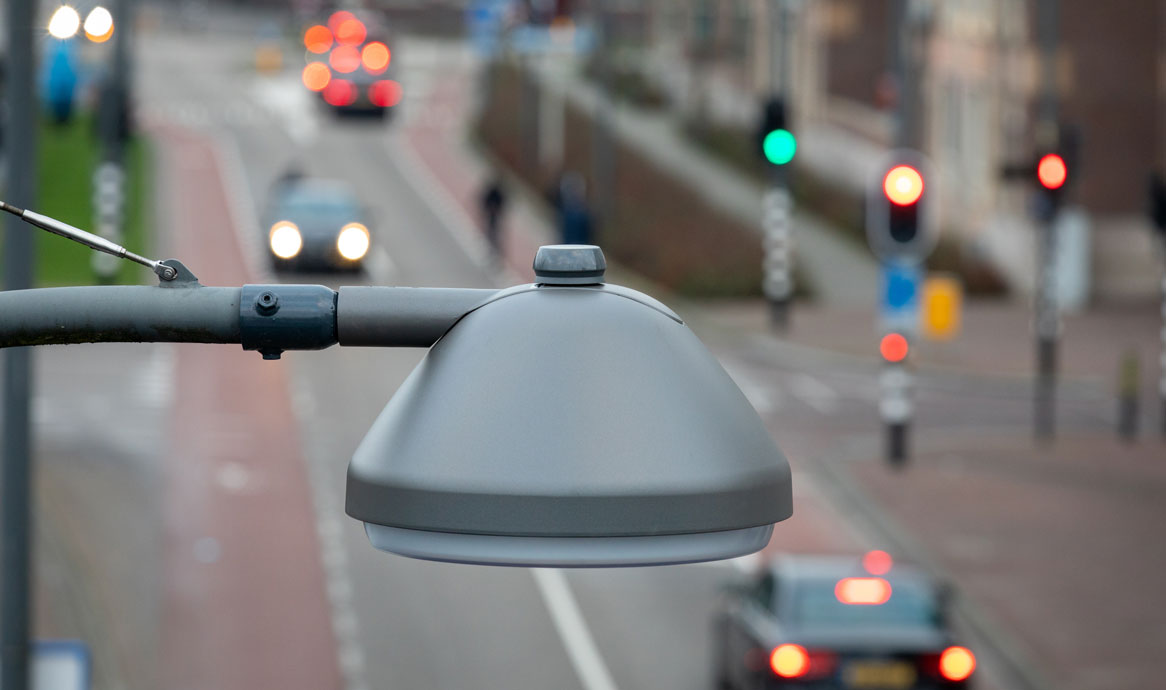

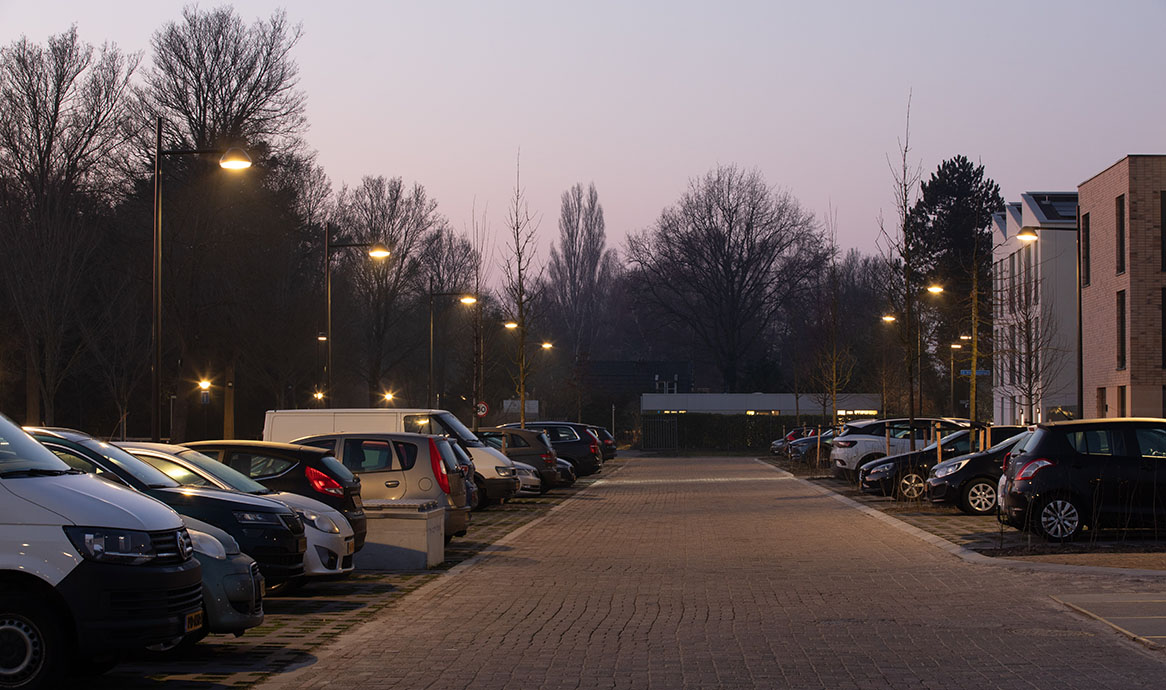

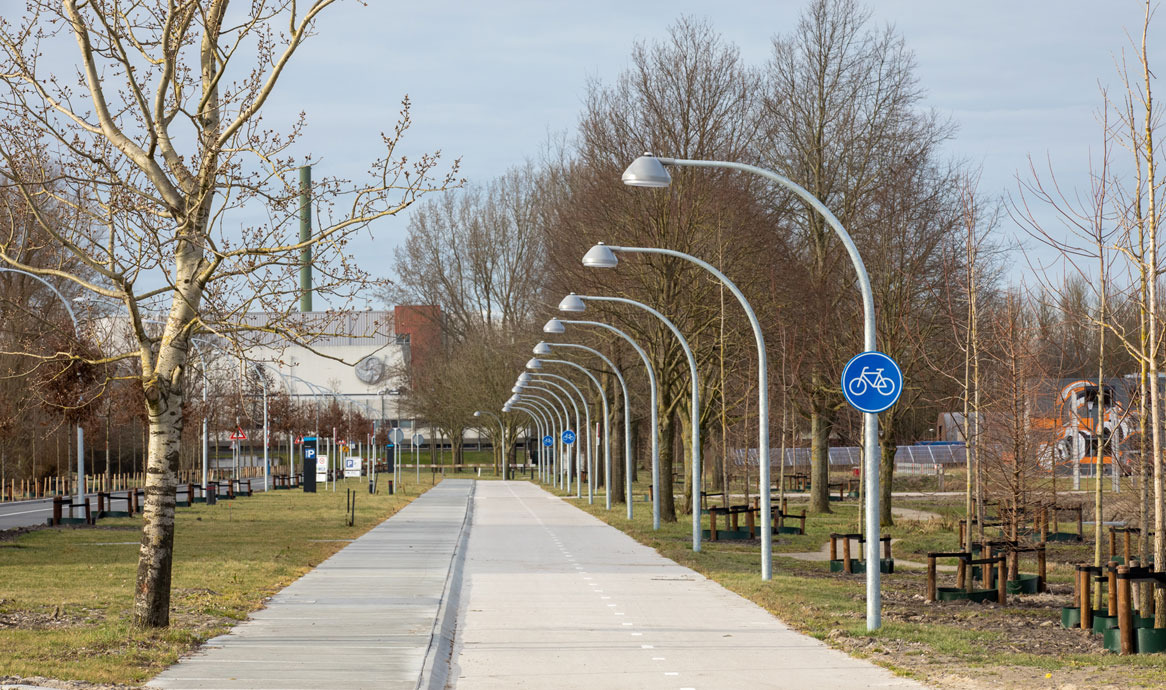

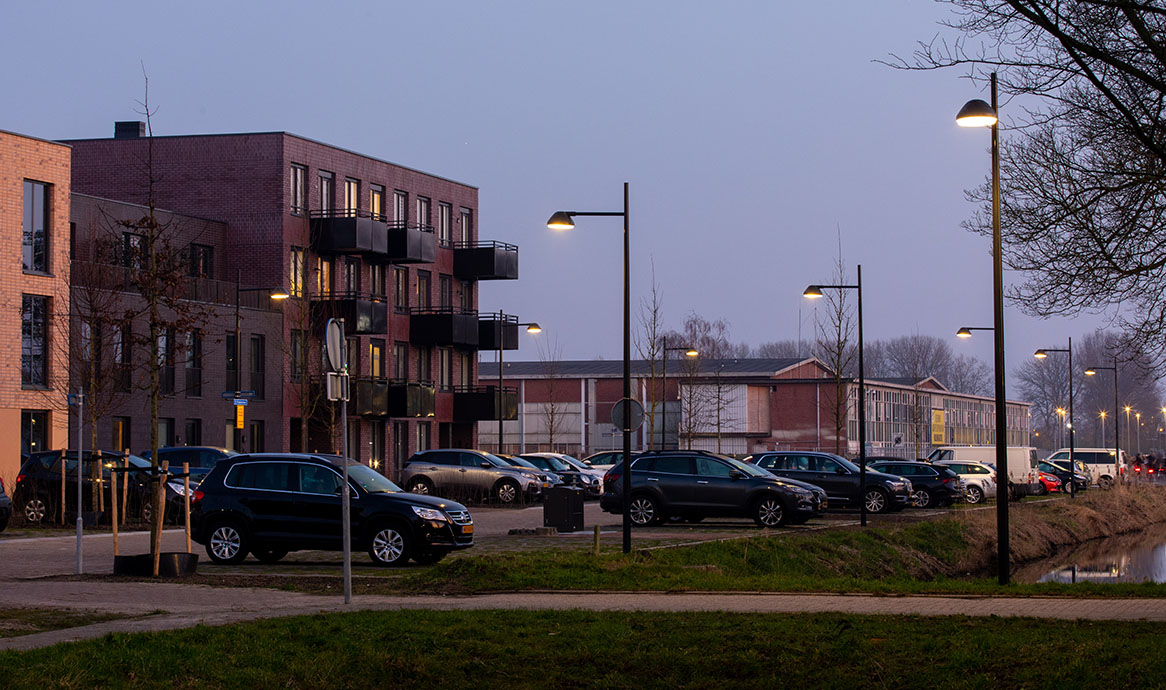

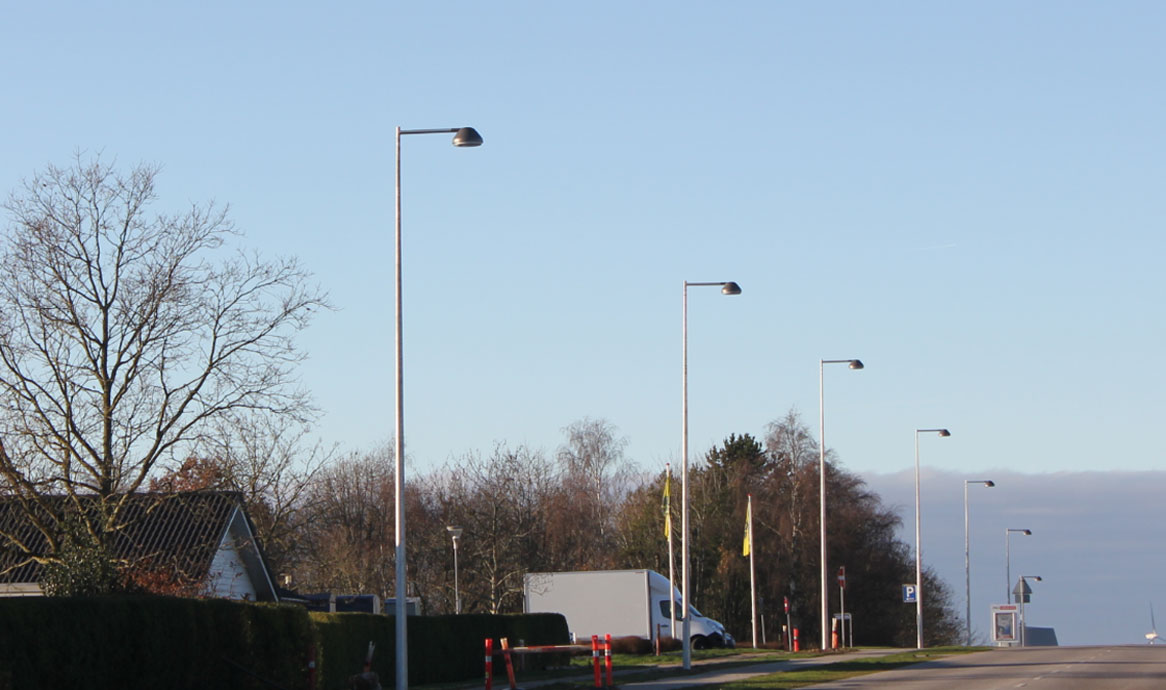

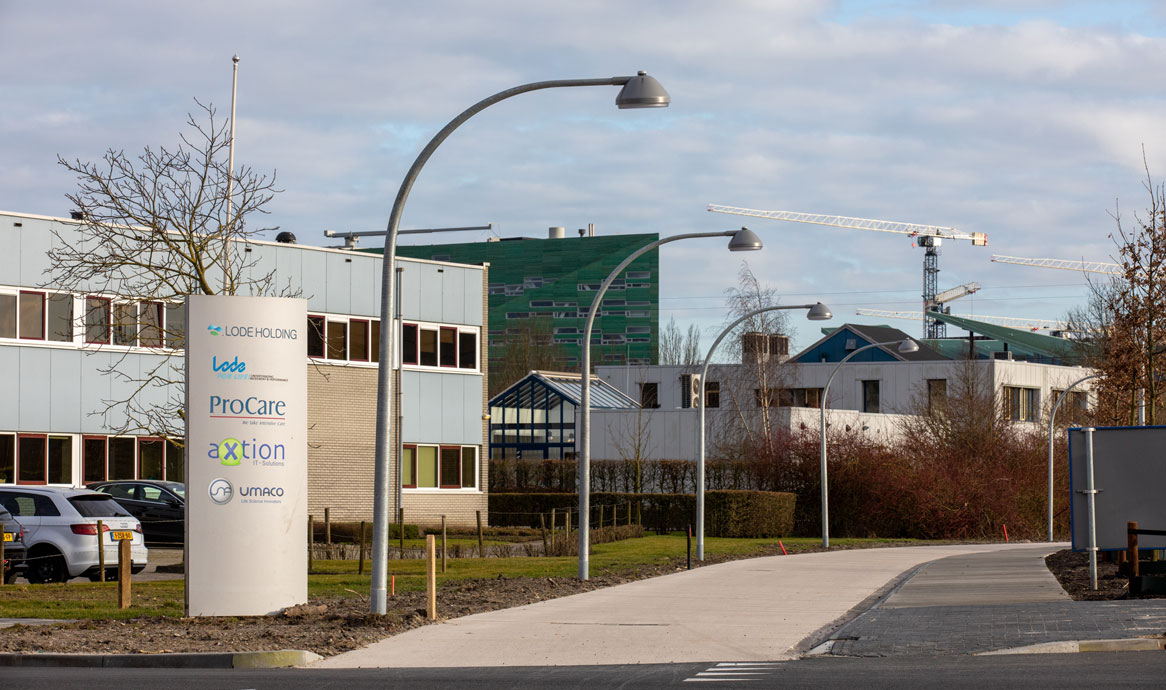

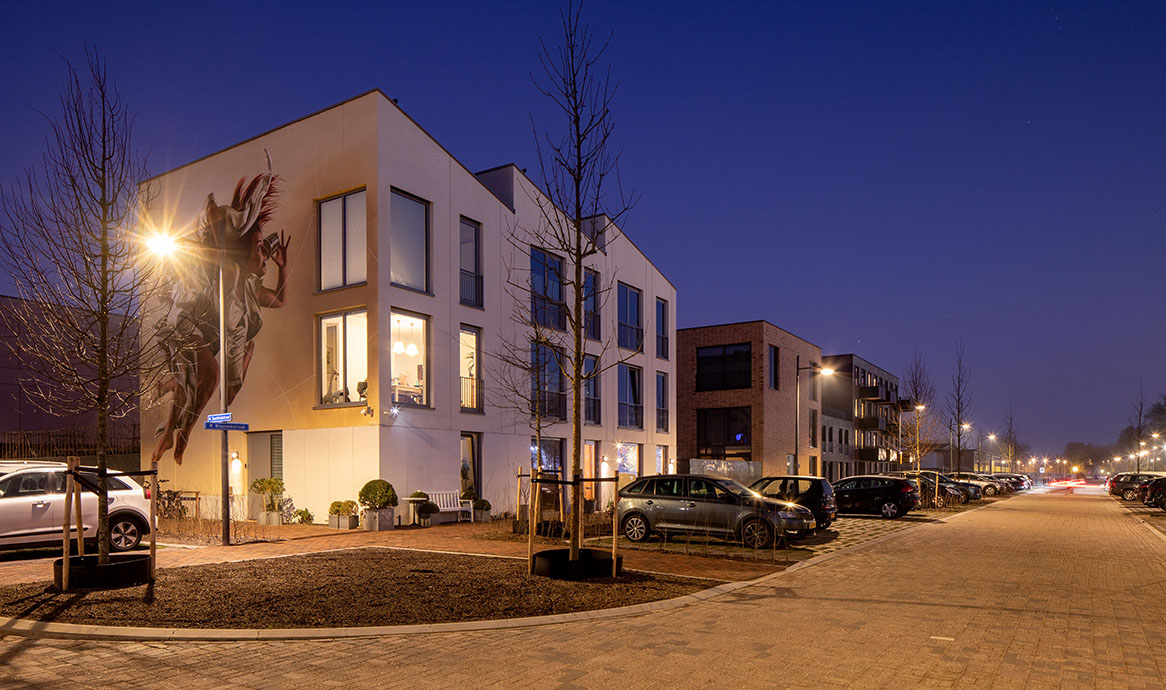

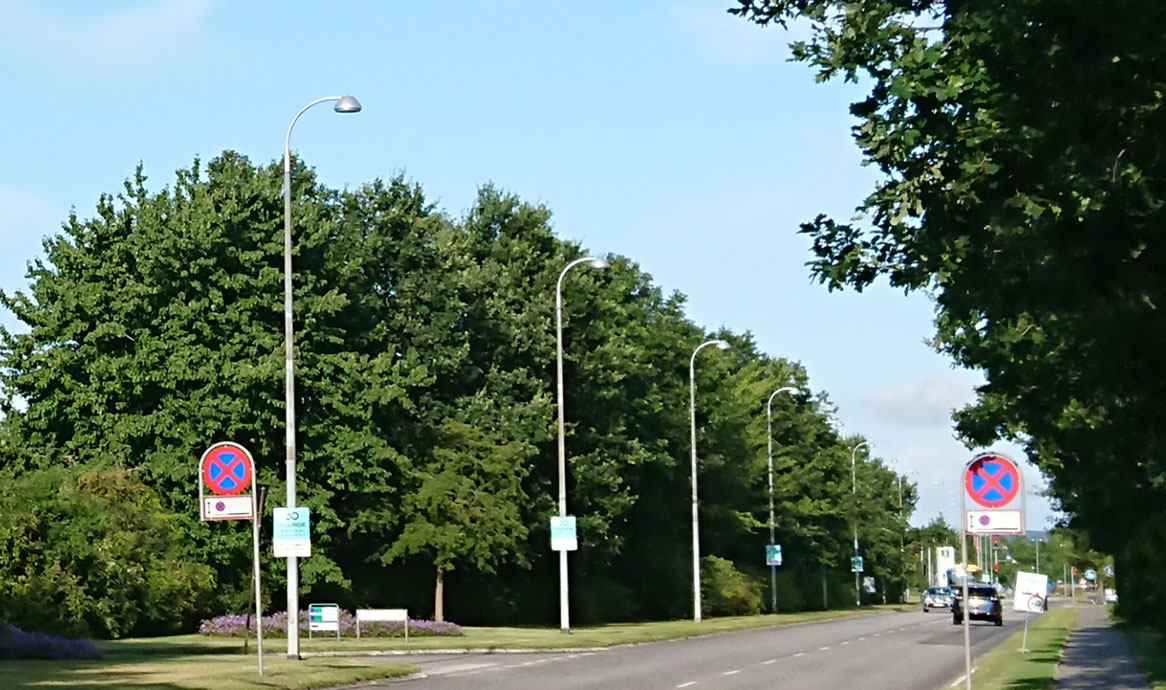

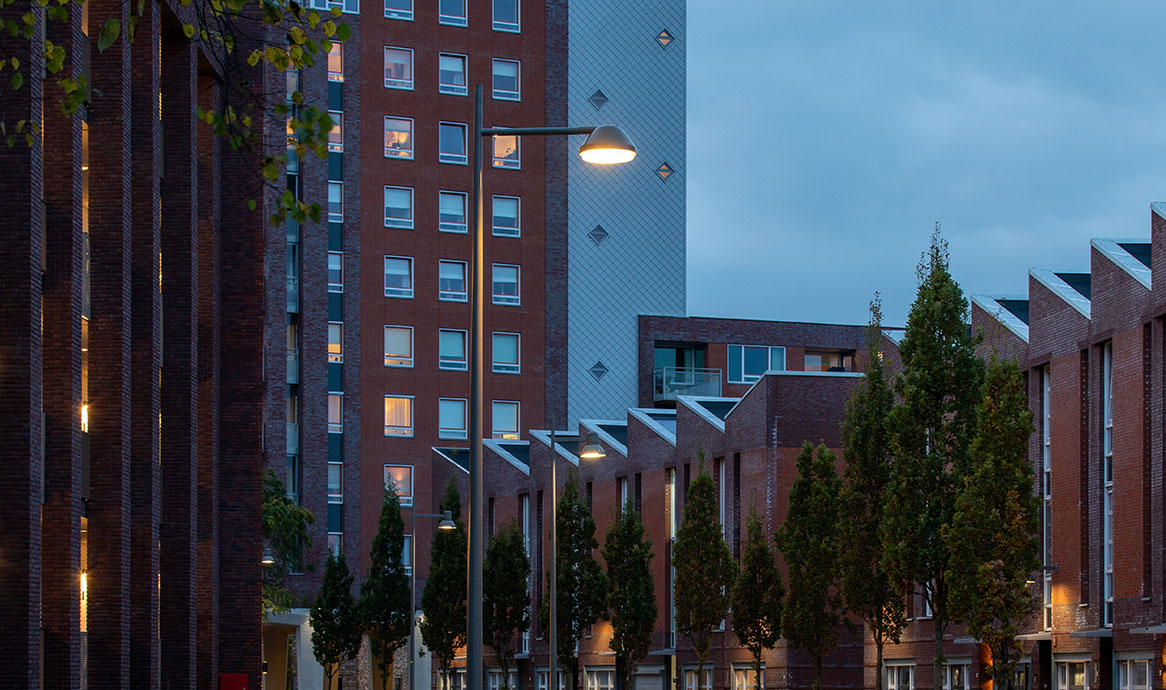

WAY is a versatile street luminaire to be mounted on arm or wire.
Like the other AART designs, WAY is modern lines in a classic form - a Nordic design that will suit streets and urban space in any city in the world.
The unique shade offers optical guidance and reduces discomfort glare to a minimum.
Specifications
WAY side entry T4
Luminaire
| WAY side entry comfort | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | UV-resistant polycarbonate, Clear |
| Mounting | Side entry, Ø 1,9 in or Ø 2,4 in |
| Connection | 18 ft SJTW5xAWG18 (SJTW3xAWG18 for NEMA socket), is included |
| Classification | cULus; Wet location; IP66; class I; IK10 (with NEMA socket IK09) |
| Corrosion class | C4, C5 optional |
| Weight | 25 lbs |
| Wind-sweeping area | 1,18 ft² |
LED
| LED | 3xFF-DA 2x6 with T3 lenses for local roads |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25° C), L90B10 |
| Color temperature | 2700, 3000, or 4000 Kelvin |
| Color rendering | min 80, typically 85 CRI |
| Color accuracy | 5 steps SDCM |
Driver
| Driver | Inventronics 100W 70-1050mA 0-10V |
|---|---|
| Inrush current | @120V; max 57,2 A (10% after 220 µs) |
| @277V; max 139 A (10% after 232 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 90-305 Vac |
| Nominal voltage, DC | 127-300 Vdc |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 10 k; L-N: 6 kV |
| Operational life | min. 100,000 hours |
| Dimming/control | 0-10V |
| Other control options | via NEMA socket |
