TURN SPOT Medium

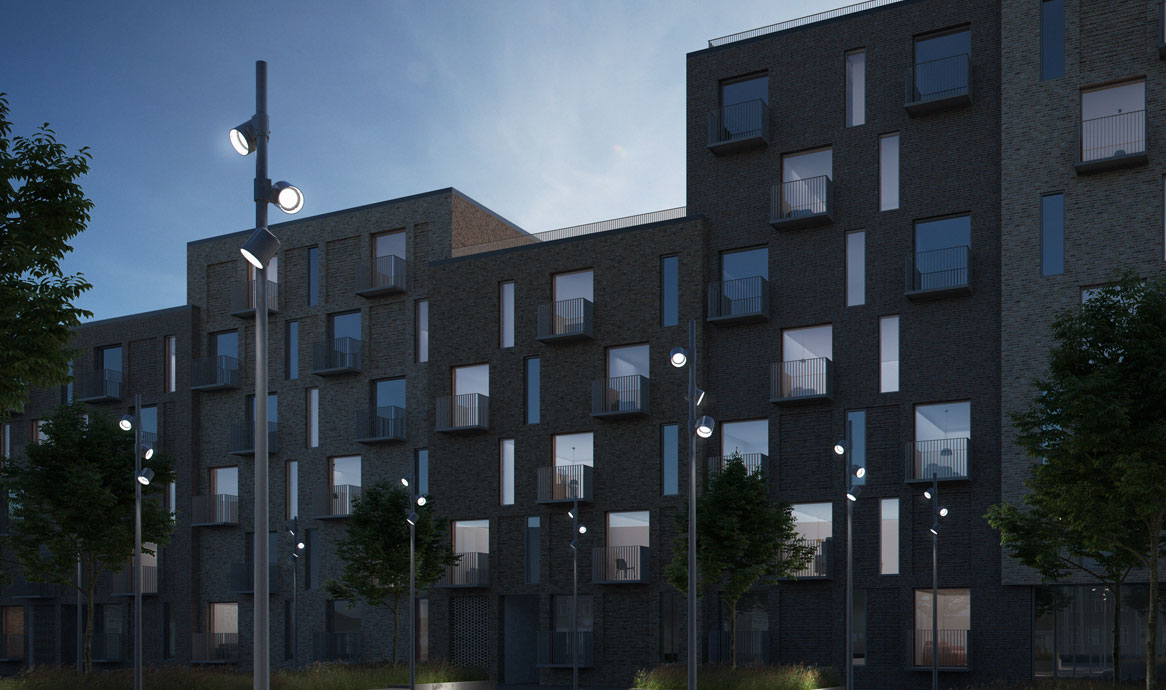

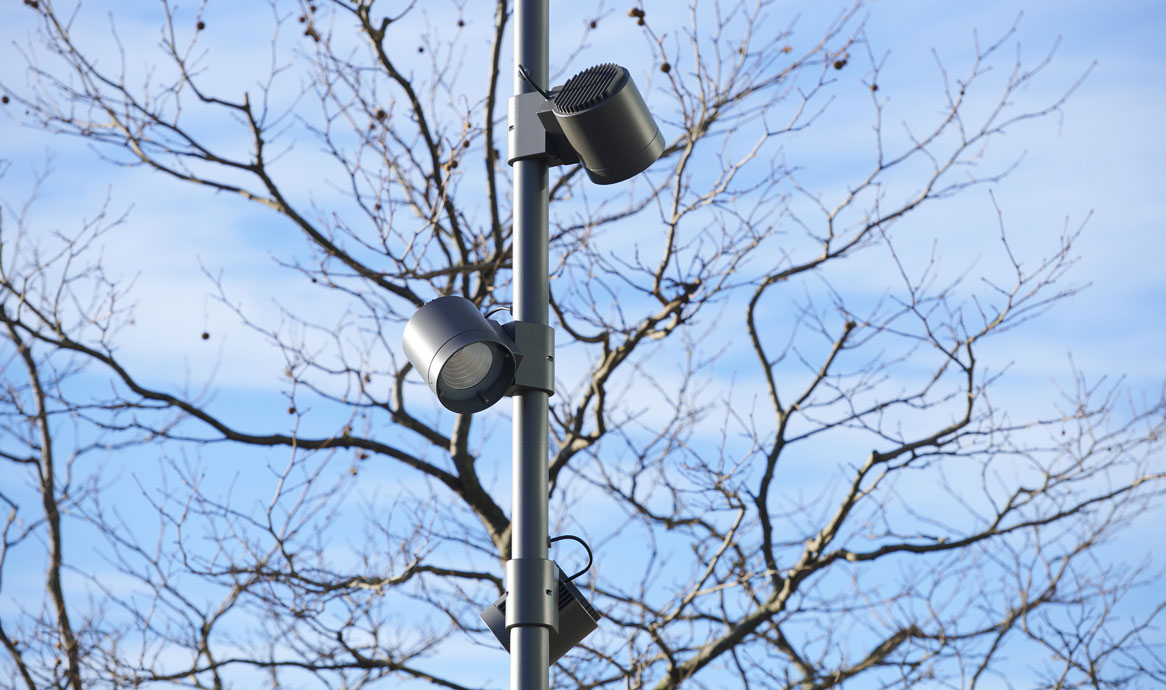

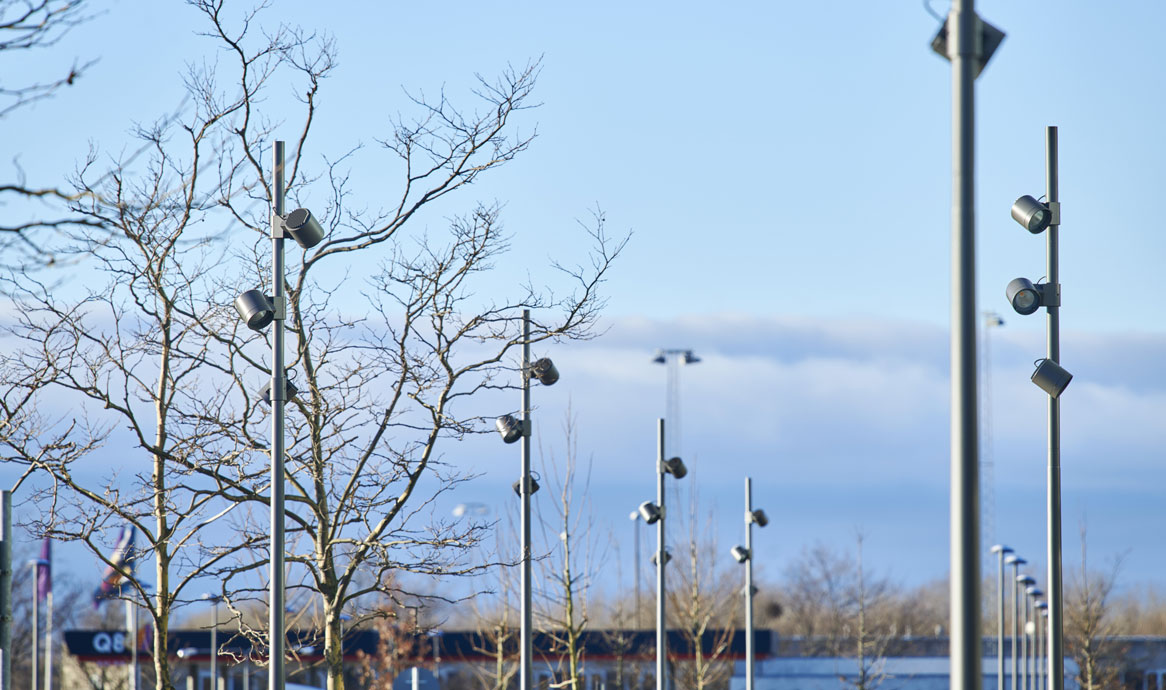

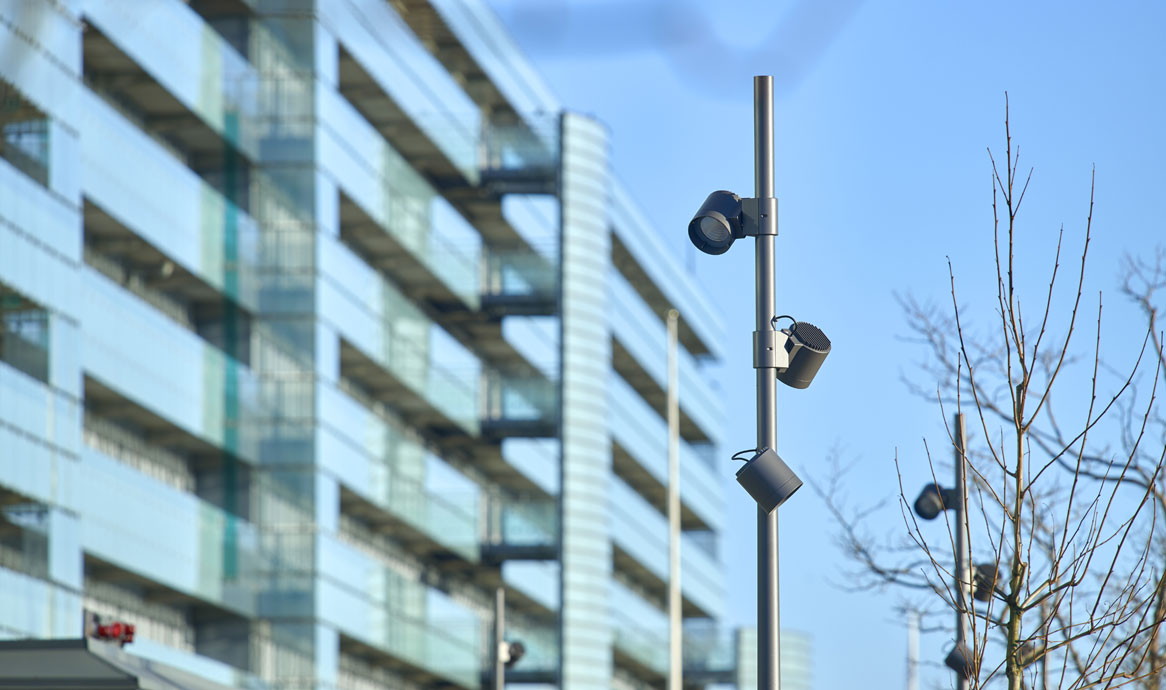

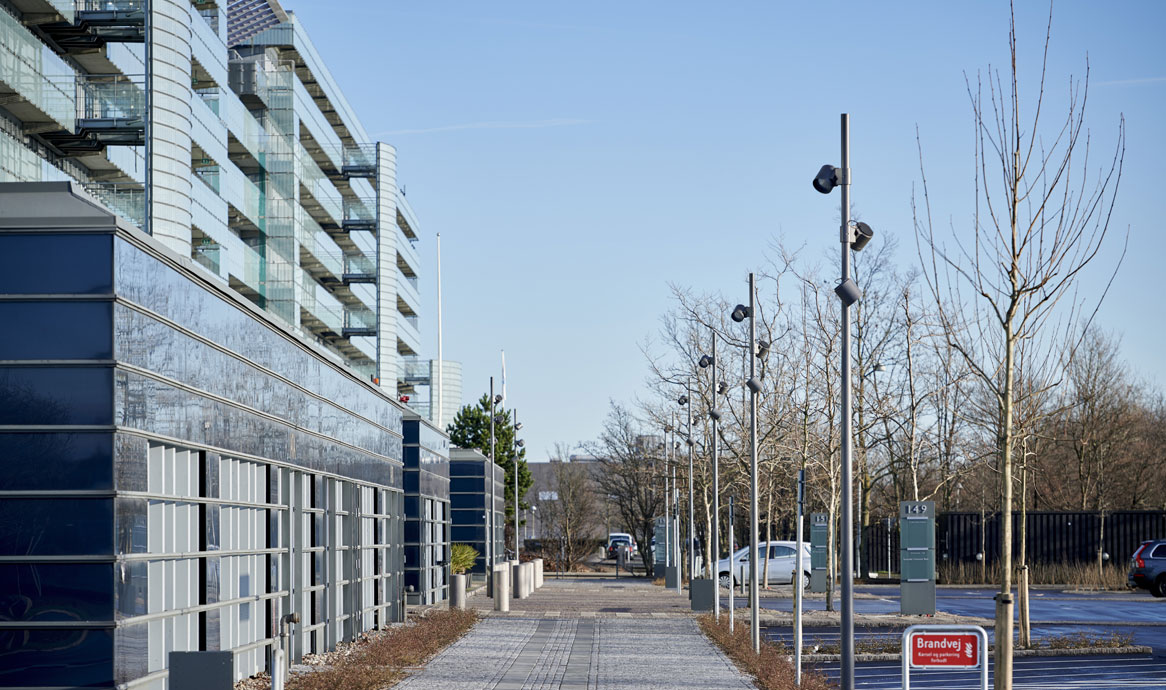

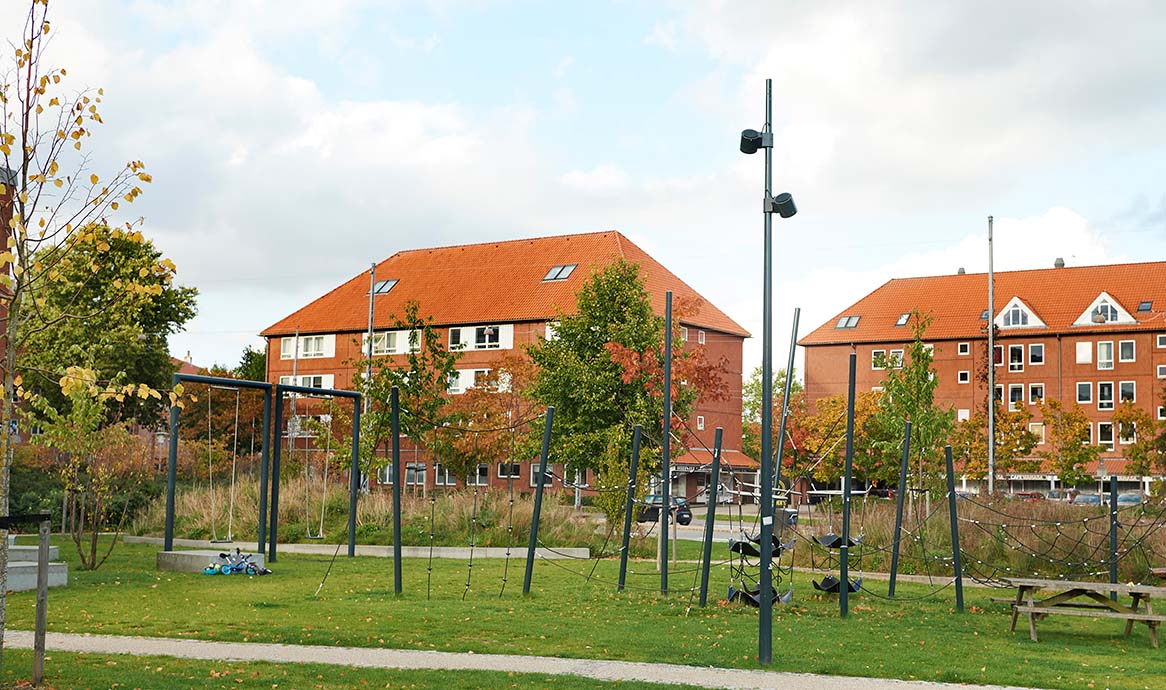

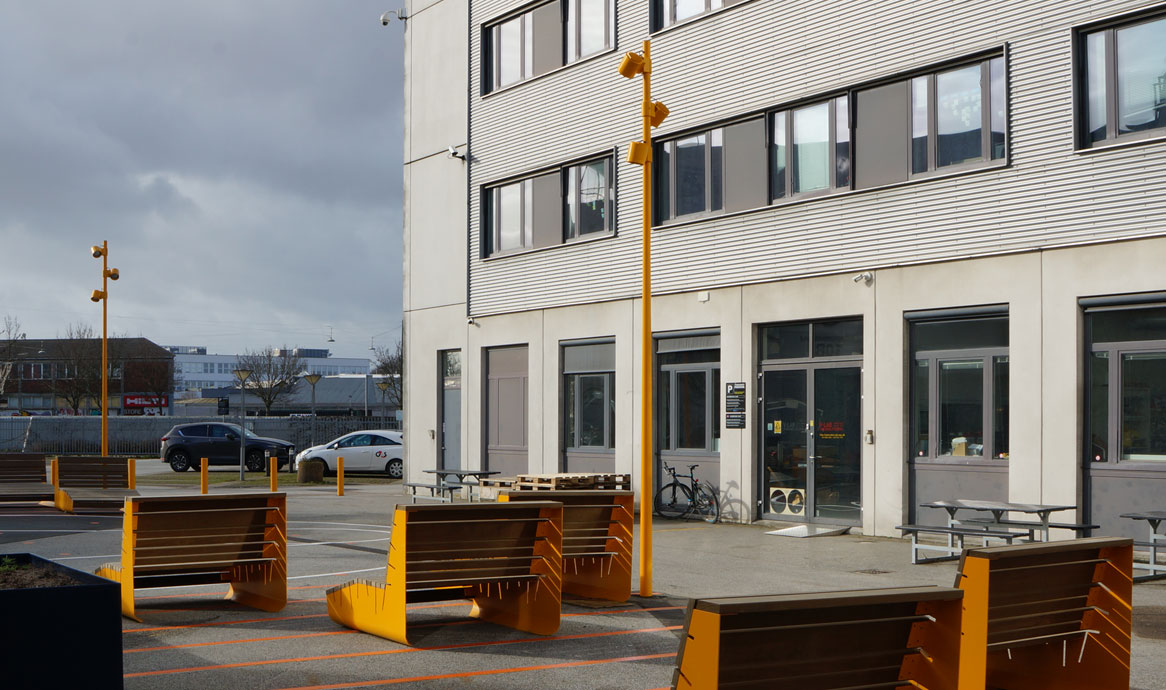

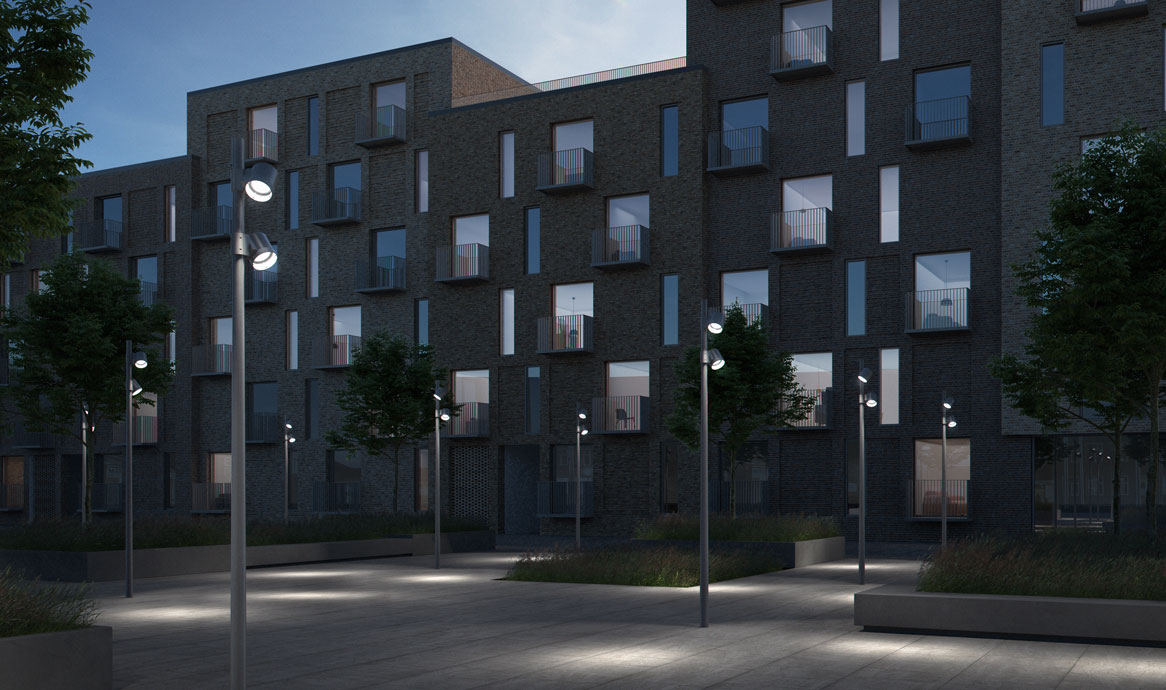

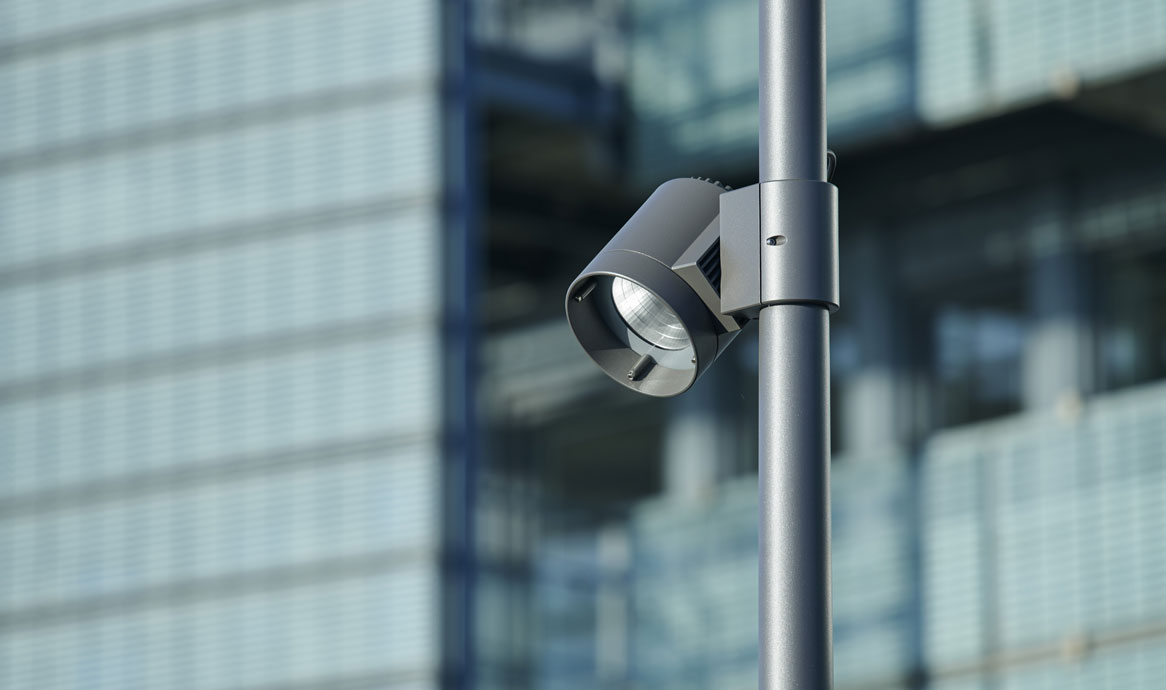

Turn is a series of sleek cylindrical spotlights that can rotate and adjust to create various effects and highlight architecture.
Specifications
TURN SPOT Medium
Luminaire
| TURN SPOT | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | Clear glass with silked edg; Honeycomb filter optional |
| Mounting | Post top/pipe: Ø3 in, Ø2,4 in with adaptor, Ø2.4-Ø3.5 in, Ø3.5-Ø4.7 inch |
| Connection | In the post, 18 ft SJTW5xAWG18, is included |
| Classification | cULus; Wet location; IP65; class I; IK8 |
| Corrosion class | C4, C5 optional |
| Weight | 13 lbs |
| Wind sweeping area | 0,61 ft² |
LED
| LED type | Bridgelux COB |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Color temperature | 2700, 3000, or 4000 Kelvin |
| Color rendering | min 80, typically 85 CRI |
| Color accuracy | 3 steps SDCM |
Driver
| Driver | Inventronic 30W 55-1050mA |
|---|---|
| Inrush current | @120V; max 21,4 A (10% after 280 µs) |
| @277V; max 51,5 A (10% after 274 µs) | |
| Nominal voltage, AC | 100-277 Vac |
| Operational input voltage, AC | 90-305 Vac |
| Nominal voltage, DC | 127-300 Vdc |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 6 k; L-N: 4 kV |
| Operational life | min 100,000 hours |
| Dimming/control | 0-10V |
| Other control options | / |
