PELÉE WALL
The Pelée family is characterised by elegant finish and comfortable light. The common feature in form of the inner conical circles contributes to the characteristic design and to the comfortable, non-glaring spread of light.

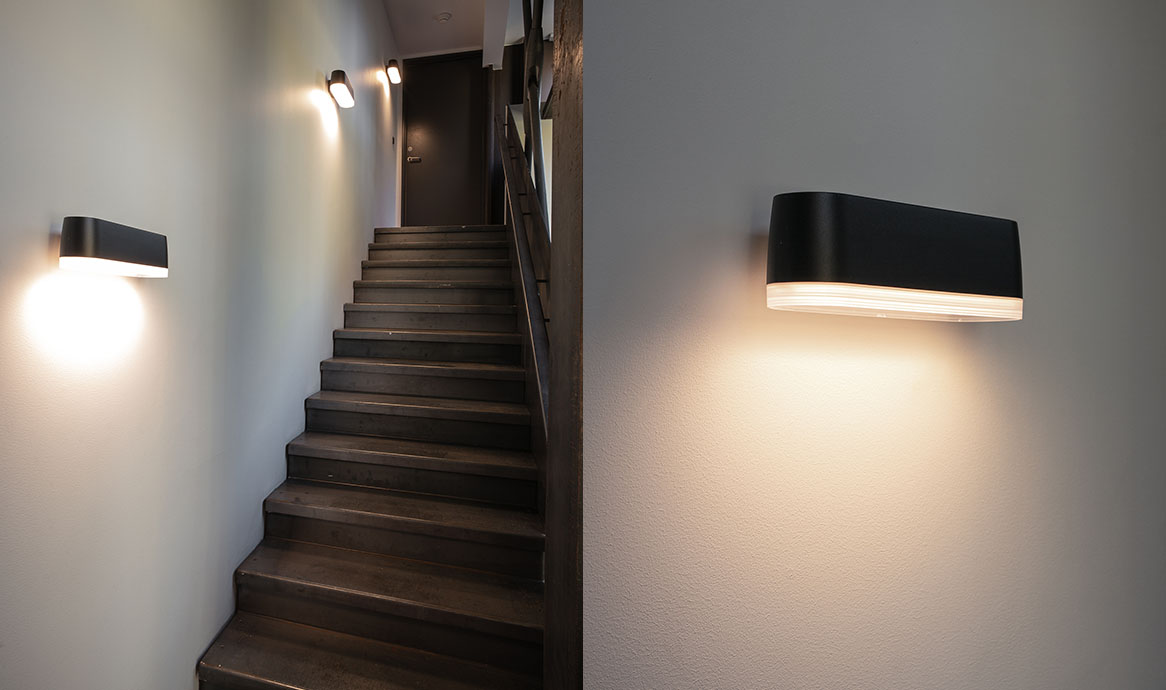

Pelée Wall is IP66 and can be used outside and in. In this case the conical finish is part of the screen, and the glowing edge adds to a pleasant atmosphere and optical guidance.
Specifications
PELÉE WALL
Luminaire
| PELÉE WALL | |
|---|---|
| Material | Cast aluminium |
| Raw anodized | |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | UV-resistant polycarbonate, frosted |
| Mounting | On wall |
| Connection | In the wall box, 5 x single core AWG18-cables are included |
| Classification | cULus; Wet location; IP66; class I; IK08 |
| Corrosion class | C4, C5 optional |
| Weight | 4 lbs |
LED and driver data
| LED | Bridgelux LED line |
|---|---|
| Operational life | min 50,000 hours at ta max 77°F (25°C), L80B10 |
| Color temperature | 2700, 3000, or 4000 Kelvin |
| Color rendering | min 90 CRI |
| Color accuracy | 3 steps SDCM |
| Driver | Xitanium 25W 0.1-1.0A 0-10V |
|---|---|
| Inrush current | @120V; max 10 A (10% after 62 µs) |
| @270V; max 26 A (10% after 73 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 108-305 Vac |
| Nominal voltage, DC | / |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 2,5 k; L-N: 2,5 kV |
| Operational life | min 50,000 hours |
| Other control options | / |
