NYX 330 Wall

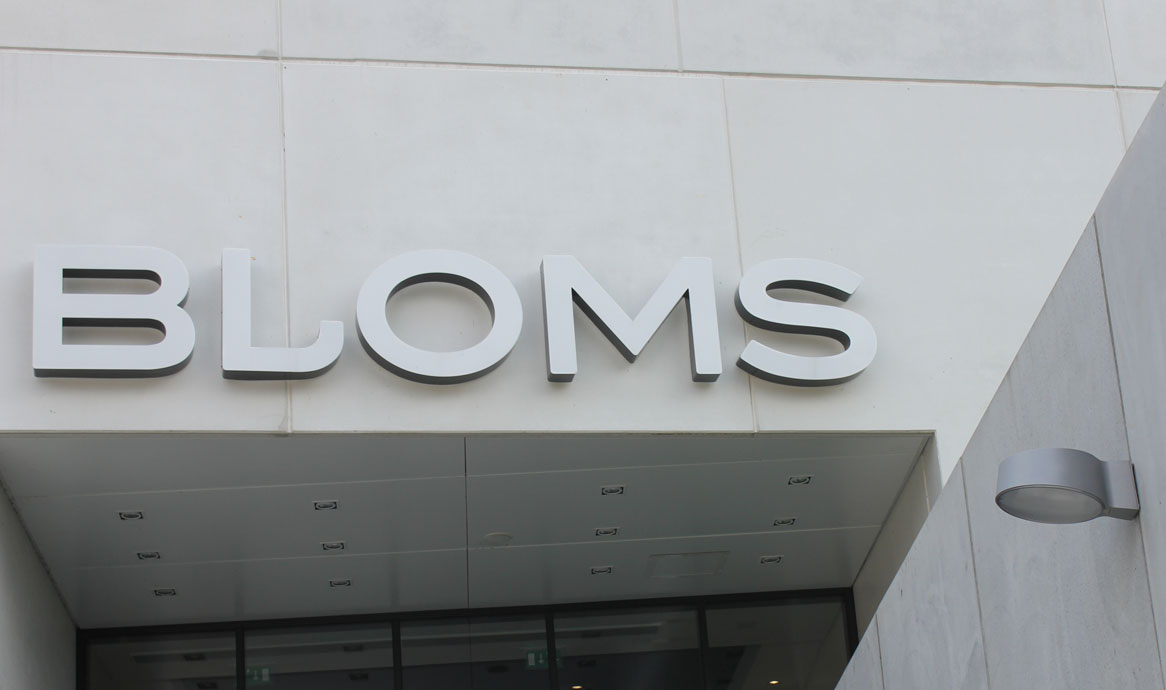

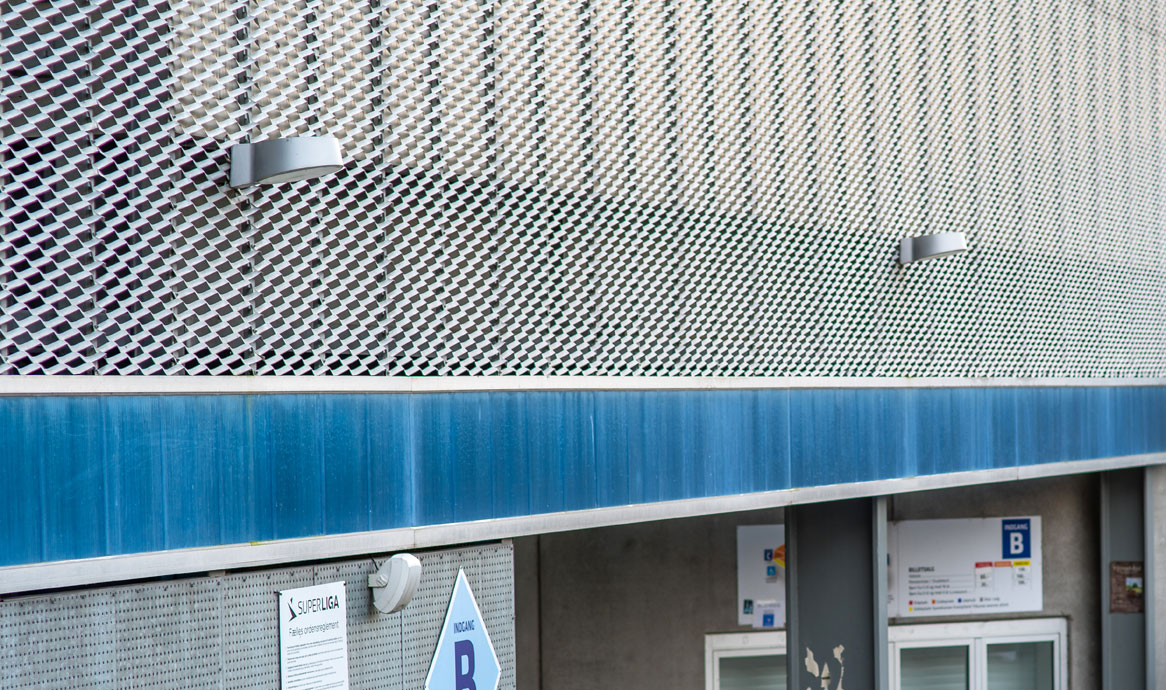

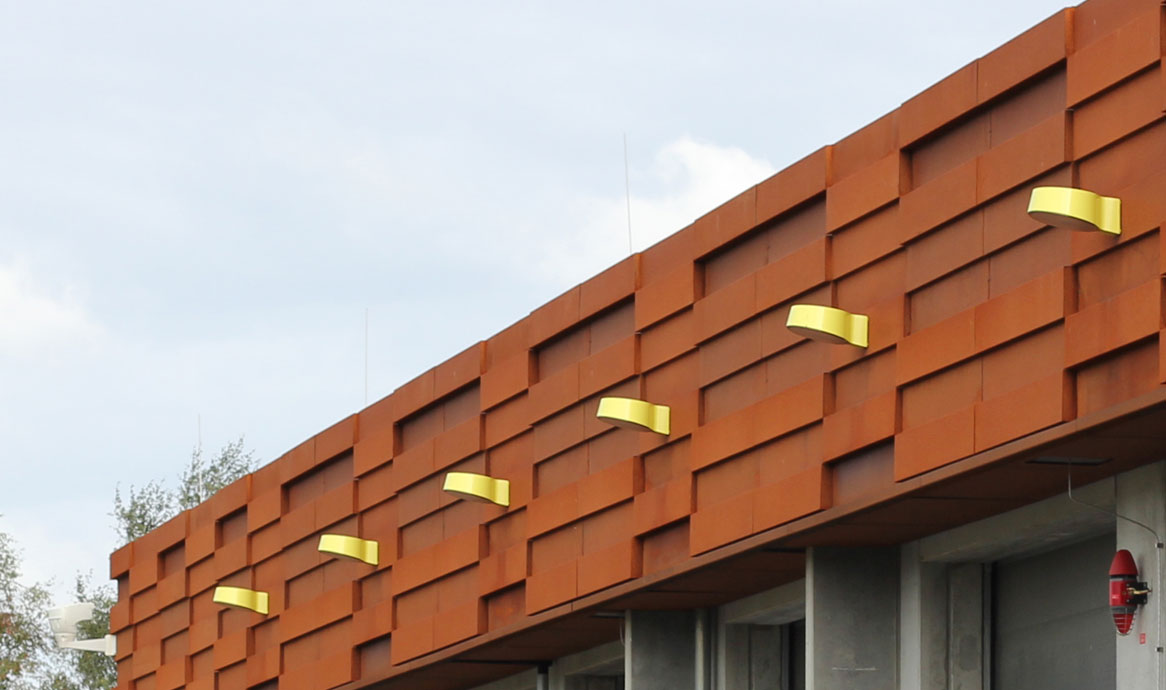

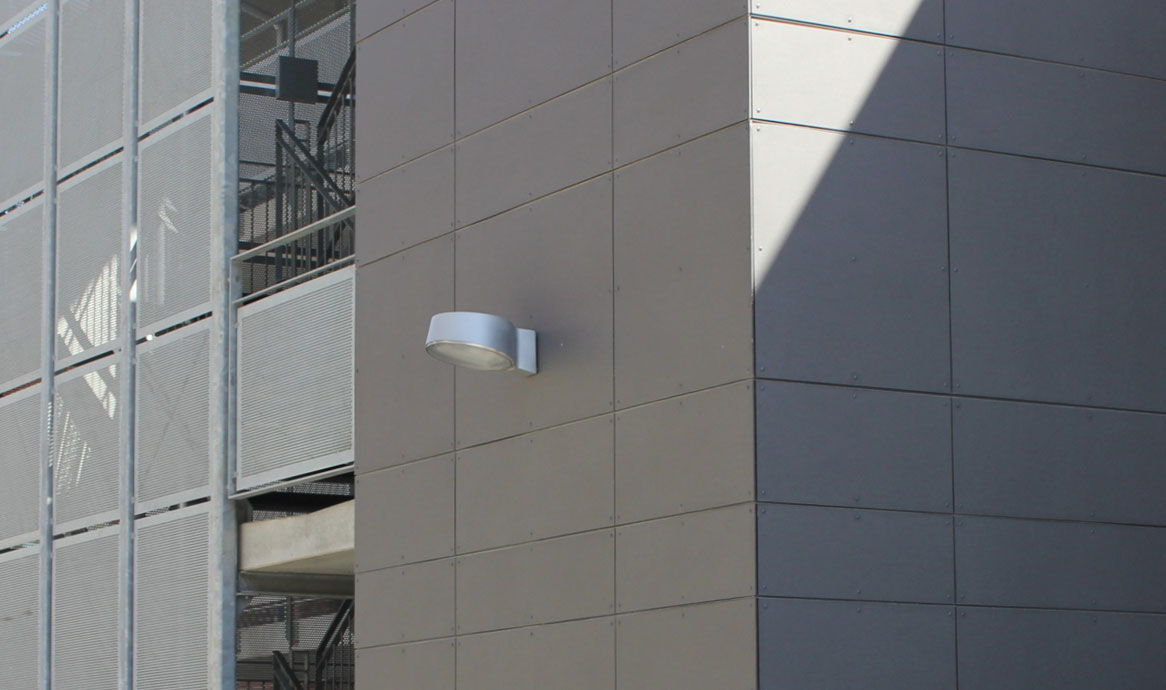

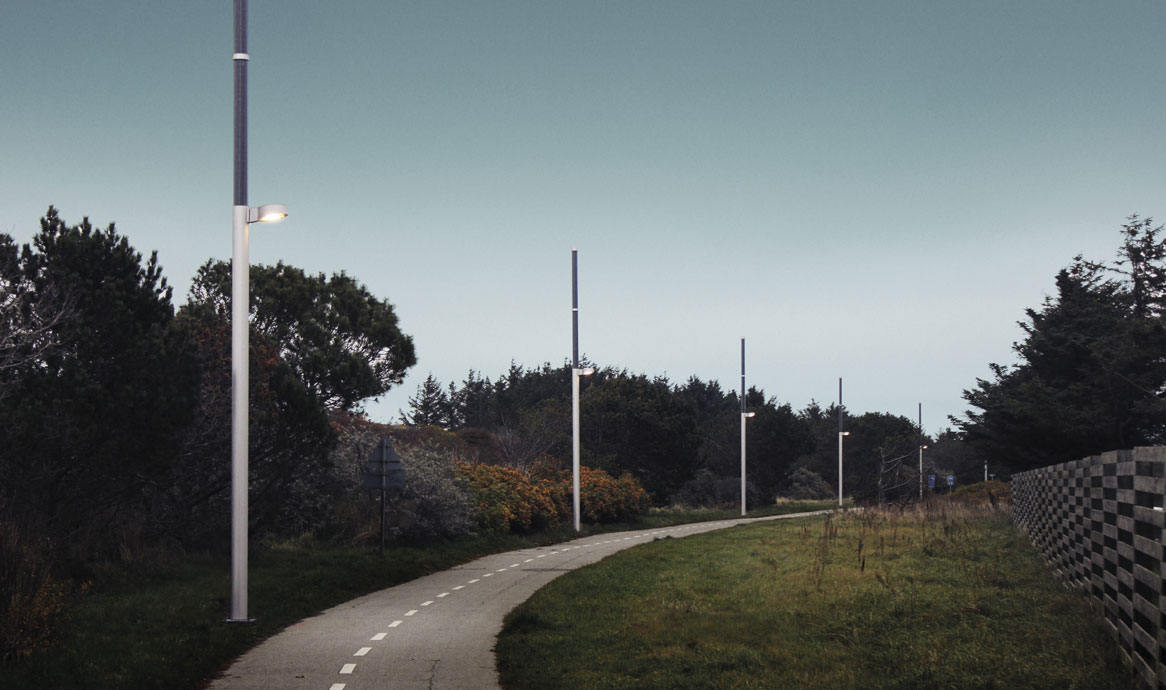

Nyx 330 wall fitting - also for solar and other customized poles.
Specifications
NYX 330 Wall
Luminaire
| NYX 330 Wall | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | UV-resistant polycarbonate, frosted opal white |
| Mounting | On wall |
| Connection | In the wall box, 5 x single core AWG18-cables are included |
| Classification | cULus; Wet location; IP65; class I; IK10 (with NEMA socket IK09) |
| Corrosion class | C4, C5 optional |
| Weight | 15 lbs |
| Wind-sweeping area | 0,57 ft² |
LED and driver data
| LED | FF-DA with an advanced optical cover |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Color temperature | 2700, 3000 or 4000 Kelvin |
| Color rendering | min 80 CRI |
| Color accuracy | 5 steps SDCM |
| Driver | Xitanium 55W 0.1-1.8A 0-10V |
|---|---|
| Inrush current | @120V; max 23 A (10% after 166,5 µs) |
| @277V; max 51,5 A (10% after 158 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 108-305 Vac |
| Nominal voltage, DC | 125-250 Vdc |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 6 k; L-N: 6 kV |
| Operational life | min 100,000 hours |
| Dimming/control | 0-10V |
| Other control options | via NEMA socket |
