NYX 330 post top Comfort

Nyx 330 is available for post or wall mounting. Like the other fittings in the Nyx family, it comes in black and two grey shades, both of which will fit galvanised standard poles.

The luminaire will fit any post type with a top diameter of 2,4.

Multiple Nyx variants are available for cylindrical columns, Ø2,4.

Specifications

NYX 330 post top Comfort

Luminaire

NYX 330 post top
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel
	RAL by your choice
Shade	UV-resistant polycarbonate, frosted
Mounting	Post top/pipe: Ø2,4 in x H4 in
Multiple Nyx	Available with penetrated housing for several luminaires on 60 mm pole. See data at Media & downloads below.
Connection	In the pole, 18 ft SJTW5xAWG18 (SJTW3xAWG18 for NEMA socket), is included
Classification	cULus; Wet location; IP65; class I; IK10 (with NEMA socket IK09)
Corrosion class	C4, C5 optional
Weight	18 lbs
Wind-sweeping area	0,57 ft²

LED and driver data

LED	FF-DA with lenses
Operational life	min 100,000 hours at ta max 77°F (25°C), L90B10
Color temperature	2700, 3000, or 4000 Kelvin
Color rendering	min 70, typically 75 CRI, 80 CRI optional
	option for 80 CRI; OBS: longer lead times for CRI 80
Color accuracy	5 steps SDCM

Driver	Xitanium 55W 0.1-1.8A 0-10V
Inrush current	@120V; max 23 A (10% after 166,5 µs)
	@277V; max 51,5 A (10% after 158 µs)
Nominal voltage, AC	120-277 Vac
Operational input voltage, AC	108-305 Vac
Nominal voltage, DC	125-250 Vdc
Nominal frequency range	50-60 Hz
Surge protection	L/N-GND: 6 k; L-N: 6 kV
Operational life	min 100,000 hours
Dimming/control	0-10V
Other control options	via NEMA socket

Media & downloads

Product information

Instructions Nyx 330 Post TopPDF MaintenancePDF RoHS DeclarationPDF

3D files

Nyx 330 pole topRFA Nyx 330 pole topGSM Nyx 330 pole topLCF Nyx 330 pole top3DS Nyx 330 pole topDWG Nyx 330 pole topDXF Nyx 330 pole topIES

Photos

Product image, Nyx 330JPG Product image, Nyx330 corten brownJPG Product image, Multiple Nyx - corten brownJPG Product image, Multiple Nyx - noir 900JPG Nyx 330, local roadsPDF Nyx 330 and 190, Bjerglandsbyen, Copenhagen suburbPDF Nyx 330, White House, EsbjergPDF Nyx 330, the Heart IkastPDF Multiple Nyx 330PDF Nyx 330, CopenhagenPDF

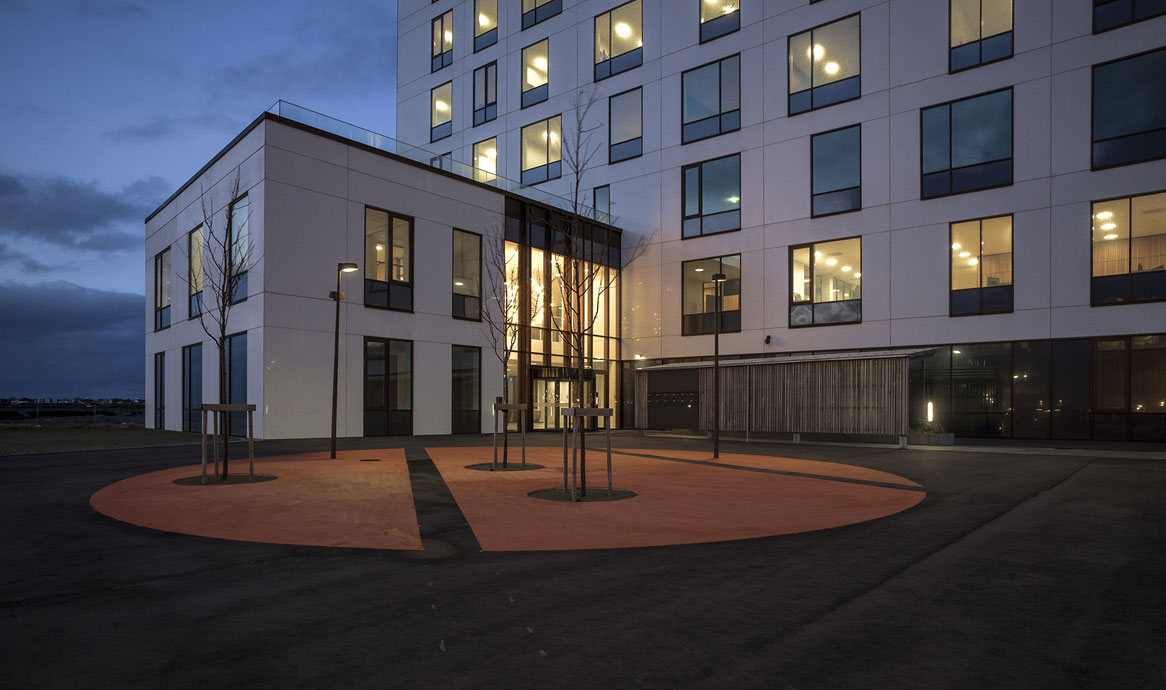

Several variations of Nyx 330 in corten brown are used around the White House at Bryggen, Esbjerg. Architects: Friis & Moltke

Umbraco.Cms.Core.Models.Link More photos from Bryggen

Several variations of Nyx 330 in corten brown are used around the White House at Bryggen, Esbjerg. Architects: Friis & Moltke

Umbraco.Cms.Core.Models.Link More photos from Bryggen

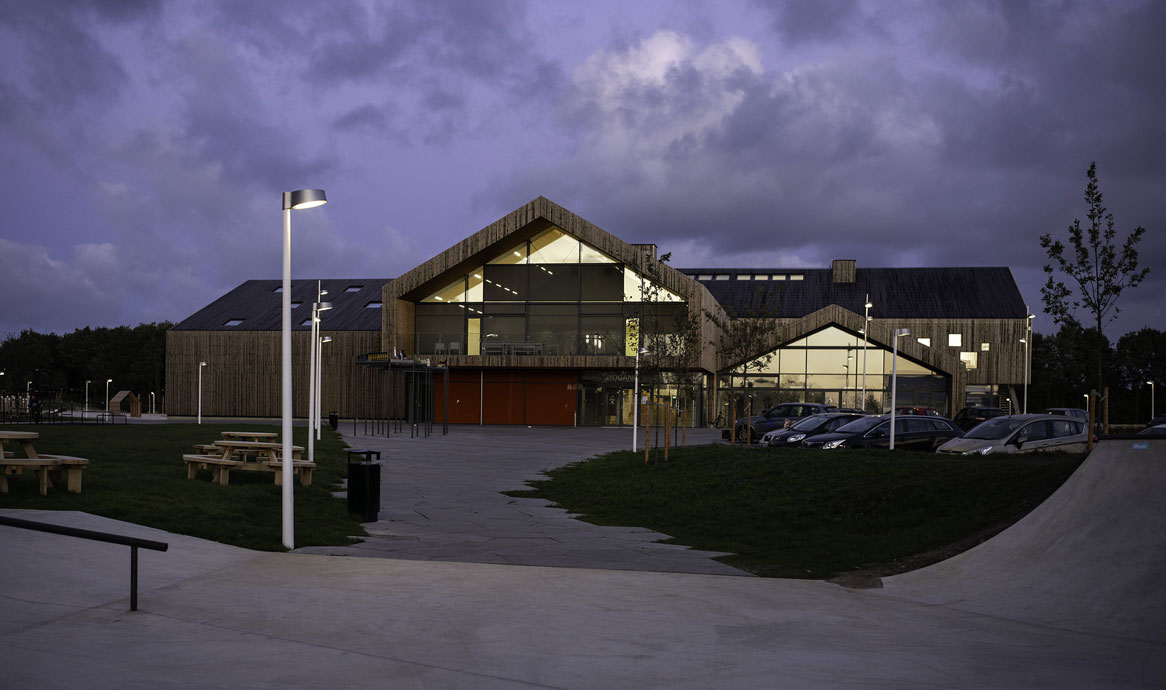

Both Nyx 330 and Multiple Nyx can be seen in the area around the International School at Ikast. C.F. Møller Architects have created a visionary environment for culture and learning.

Umbraco.Cms.Core.Models.Link More images from Ikast

The Nyx luminaires are silver grey, whereas the posts are white. The design adds character to the environment and the lamp posts become sculptures.

Umbraco.Cms.Core.Models.Link More images from Ikast

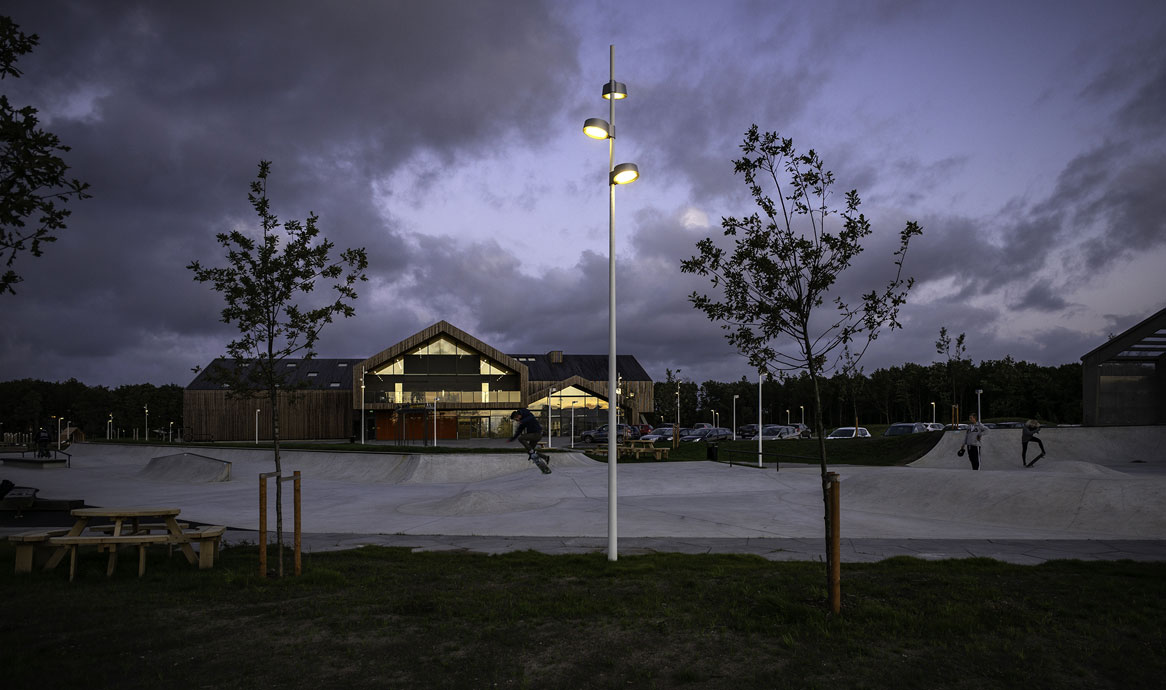

Multiple Nyx adds an extra dimension to lighting design, and by the combination of one, two, or three luminaires at a pole, variation is added to the minimalist design.
