FOCUS PARK

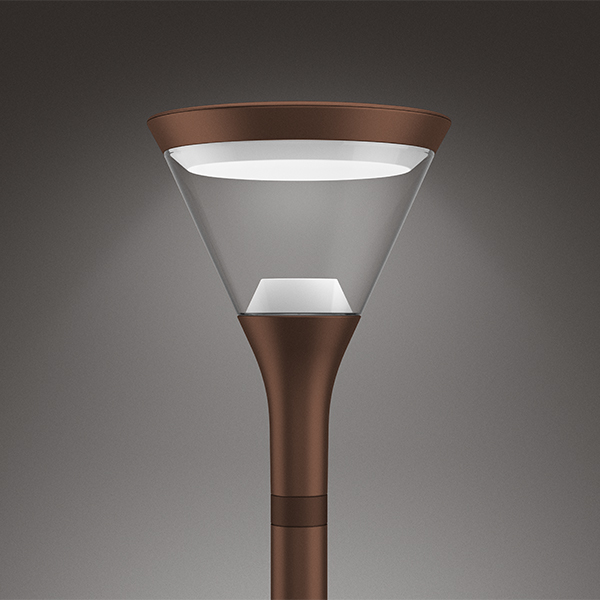

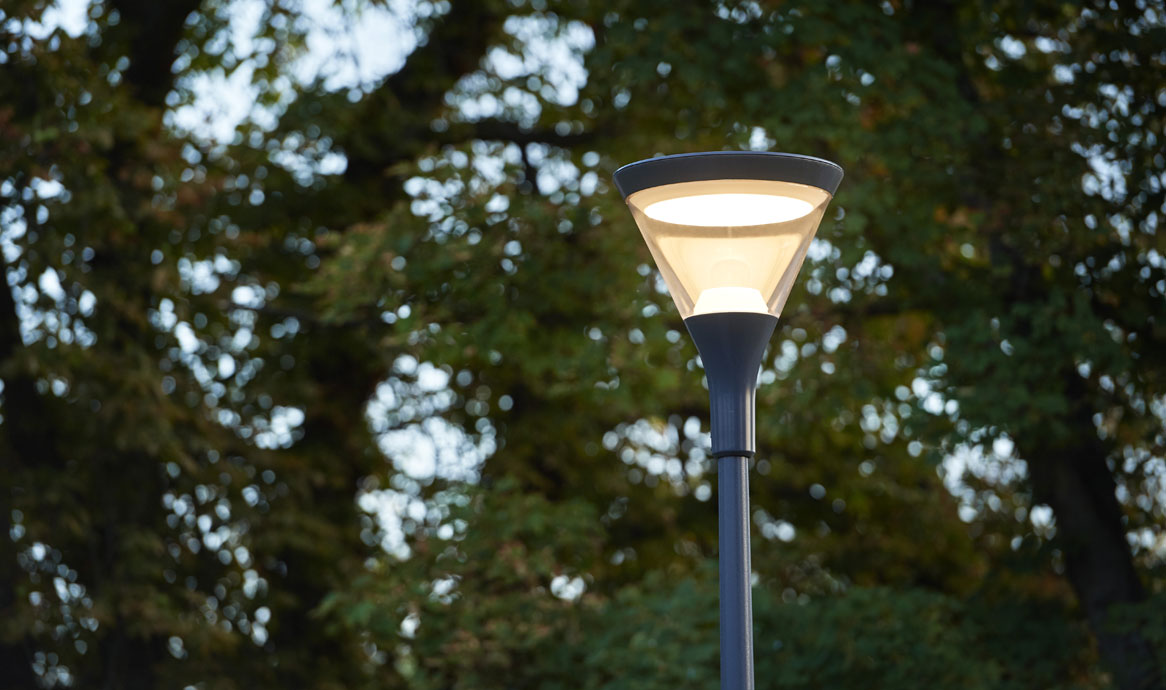

The main shape of Focus Park reflects the direction and natural distribution of light. Thus design and lighting support each other, making form and function interact.
Due to the elegant design and high-quality materials, Focus Park will fit into the surroundings and adapt to any environment - residential, street, urban etc.
Watch the video presenting Focus Park in Vedbæk.
Specifications
FOCUS PARK
Luminaire
| FOCUS PARK | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | Clear polycarbonate with UV-resistant acrylate on both sides |
| Mounting | Post top/pipe: Ø2,4 in x h4 in or Ø3 x h2 in |
| Connection | In the post, 18 ft SJTW5xAWG18 (SJTW3xAWG18 for NEMA socket), is included |
| Classification | IP66; class I; IK10 (with NEMA socket IK09) |
| Corrosion class | cULus; Wet location; IP66; class I; IK10 (with NEMA socket IK09) |
| Weight | 19 lbs |
| Wind-sweeping area | 1,54 ft² |
LED and Driver
| LED | Bridgelux COB |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 80, typically 85 CRI |
| option for 90 CRI, 3000 K, with R9 = 72; OBS: longer lead times for CRI 90 | |
| Colour accuracy | 3 steps SDCM |
| Driver | Xitanium 55W 0.1-1.8A 0-10V |
|---|---|
| Inrush current | @120V; max 23 A (10% after 166,5 µs) |
| @277V; max 51,5 A (10% after 158 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 80-264 Vac |
| Nominal voltage, DC | 108-305 Vac |
| Operational input voltage, DC | 168-275 Vdc |
| Nominal voltage, DC | 125-250 Vdc |
| Operational frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 6 k; L-N: 6 kV |
| Operational life | min 100,000 hours |
| Dimming/control | 0-10V |
| Other control options | via NEMA socket |
