FOCUS BOLLARD

"Focus Bollard is designed as one single main shape, divided into three elementary, circular shapes. A softly curved base, a conical, transparent light shade, and a distinct and precise closing element at the top."
- Morten Hove Lasthein, AART Designers

Specifications

FOCUS BOLLARD

skitse_focus-bollard-us_web

Luminaire

FOCUS BOLLARD
Material	Top in cast aluminium, bollard in galvanised steel
Powder coating	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade	Clear long-life polycarbonate with UV resistant acrylate on both sides
Mounting	Flanged base
Connection	In the post, SJTW5xAWG18, is included
Classification	IP66; class I; IK10
Corrosion class	C4, C5 optional
Weight	23 lbs
BUG Rating

LED and driver data

LED	Bridgelux COB
Operational life	min 100,000 hours at ta max 77°F (25° C), L90B10
Color temperature	2700, 3000, or 4000 Kelvin
Color rendering	min 80, typically 85 CRI
	option for 90 CRI, 3000 K, with R9 = 72; OBS: longer lead times for CRI 90
Color accuracy	3 steps SDCM

Driver	Xitanium 25W 0.1-1.0A 0-10V INT
Inrush current	@120V; max 10 A (10% after 62 µs)
	@277V; max 26 A (10% after 73 µs)
Nominal voltage, AC	120-277 Vac
Operational input voltage, AC	108-305 Vac
Nominal voltage, DC
Nominal frequency range	50-60 Hz
Surge protection	L/N-GND: 2,5 k; L-N: 2,5 kV
Operational life	min 50,000 hours
Dimming/control	0-10V

Media & downloads

Product information

Instructions Focus BollardPDF MaintenancePDF RoHS DeclarationPDF

3D files

Sky BollardRFA Sky BollardGSM Sky Bollard3DS

Photos

Product image, Sky BollardJPG Product image, Sky Bollard corten brownJPG Sky Bollard in townPDF Sky Bollard, various locationsPDF

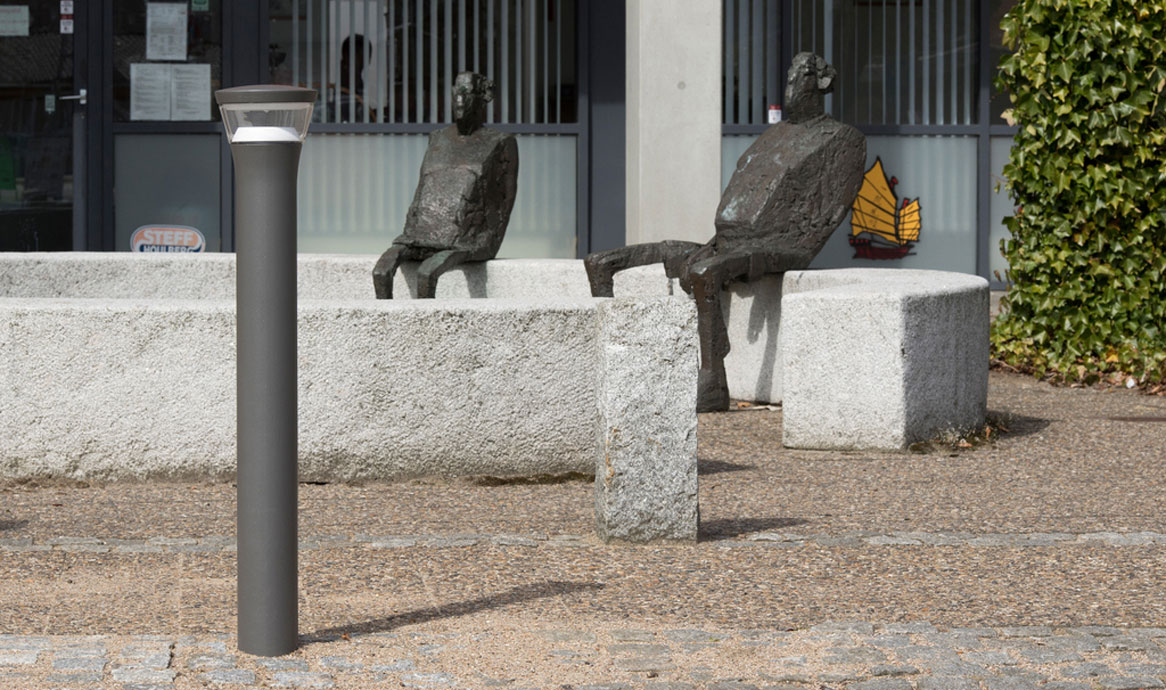

skypullert_aulum_1166_1

Focus Bollard, graphite grey finish

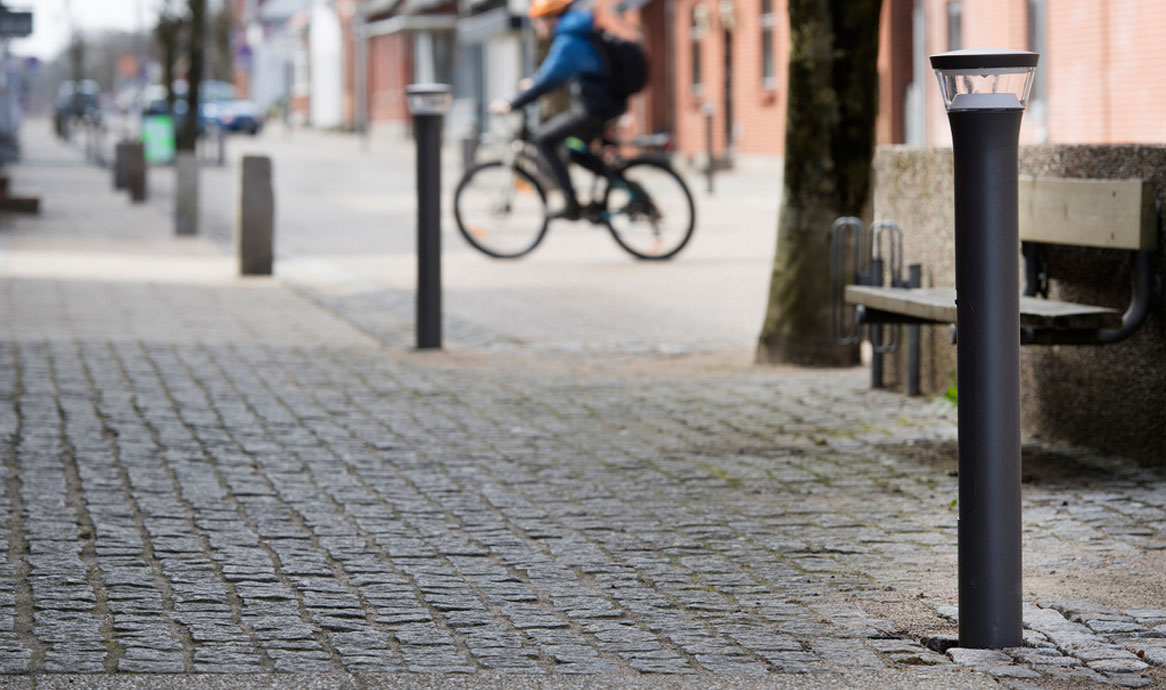

skypullert_aulum_1166_2

Focus Bollard illuminates the city centre.

skypullert_mosede_1166_1

Focus Bollard, graphite grey - Greve Kommune

skypullert_mosede_1166_2

Focus Bollard, graphite grey - Greve Kommune

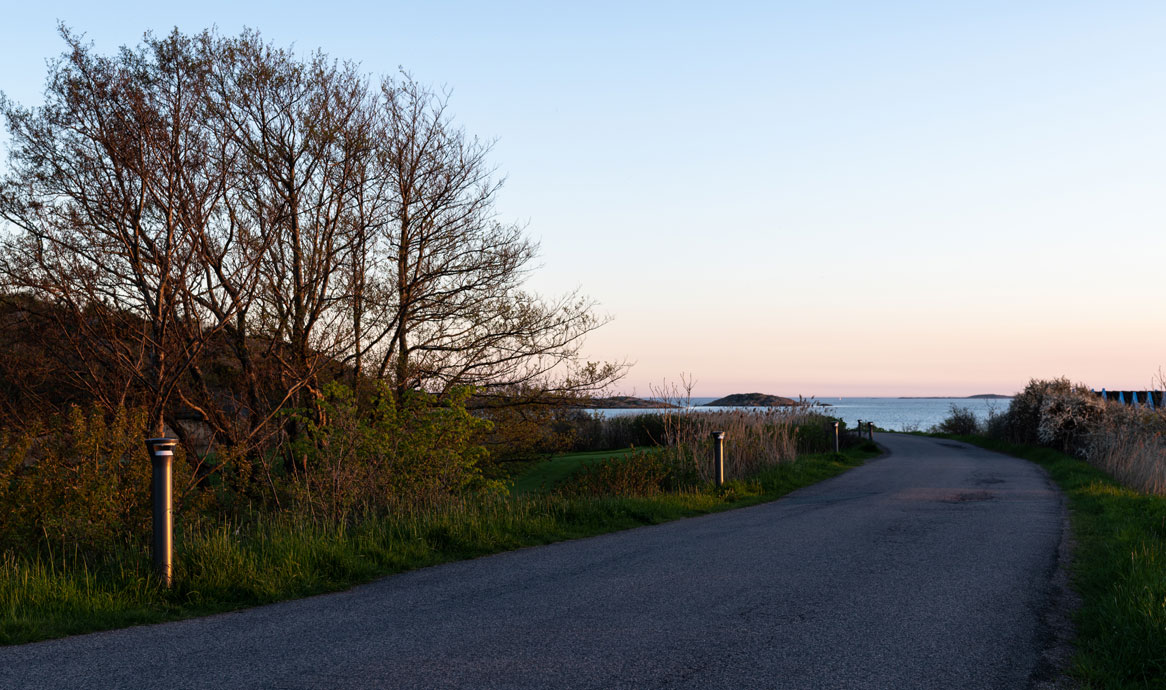

skypullert_askim_1166_1

In this application at Askim, south of Gothenburg, Sweden, the Focus Bollard is closed at one side in order to avoid light into the surroundings.

Umbraco.Cms.Core.Models.Link More images from Askim

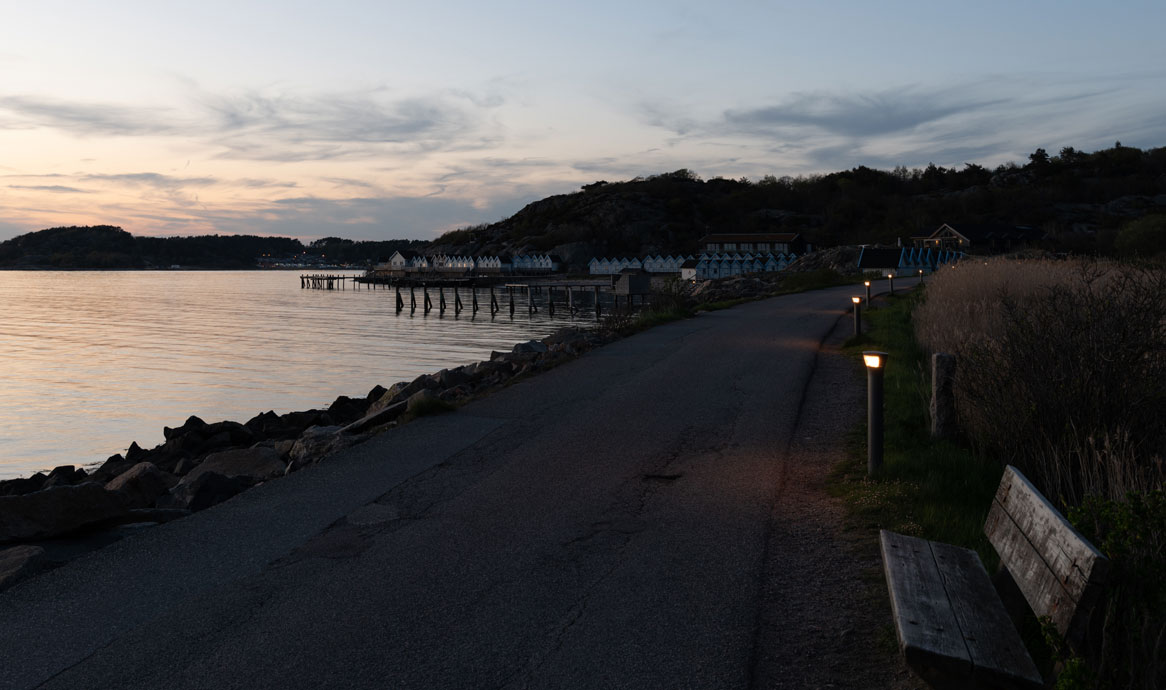

skypullert_askim_1166_2

Focus Bollard at Askim south of Gothenburg, Sweden.

Umbraco.Cms.Core.Models.Link More images from Askim

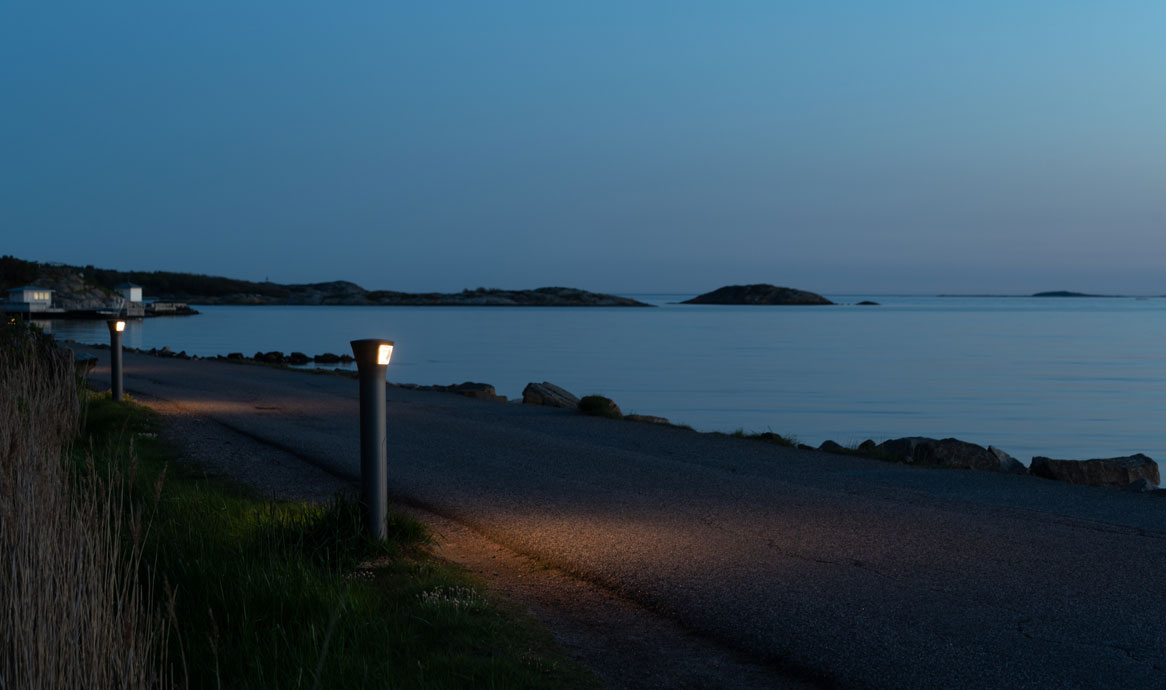

skypullert_askim_1166_4

In this application at Askim, south of Gothenburg, Sweden, the Focus Bollard is closed at one side in order to avoid light into the surroundings.

Umbraco.Cms.Core.Models.Link More images

skypullert_askim_1166_3

Focus Bollard, Askim, Gothenburg, Sweden

Umbraco.Cms.Core.Models.Link More images

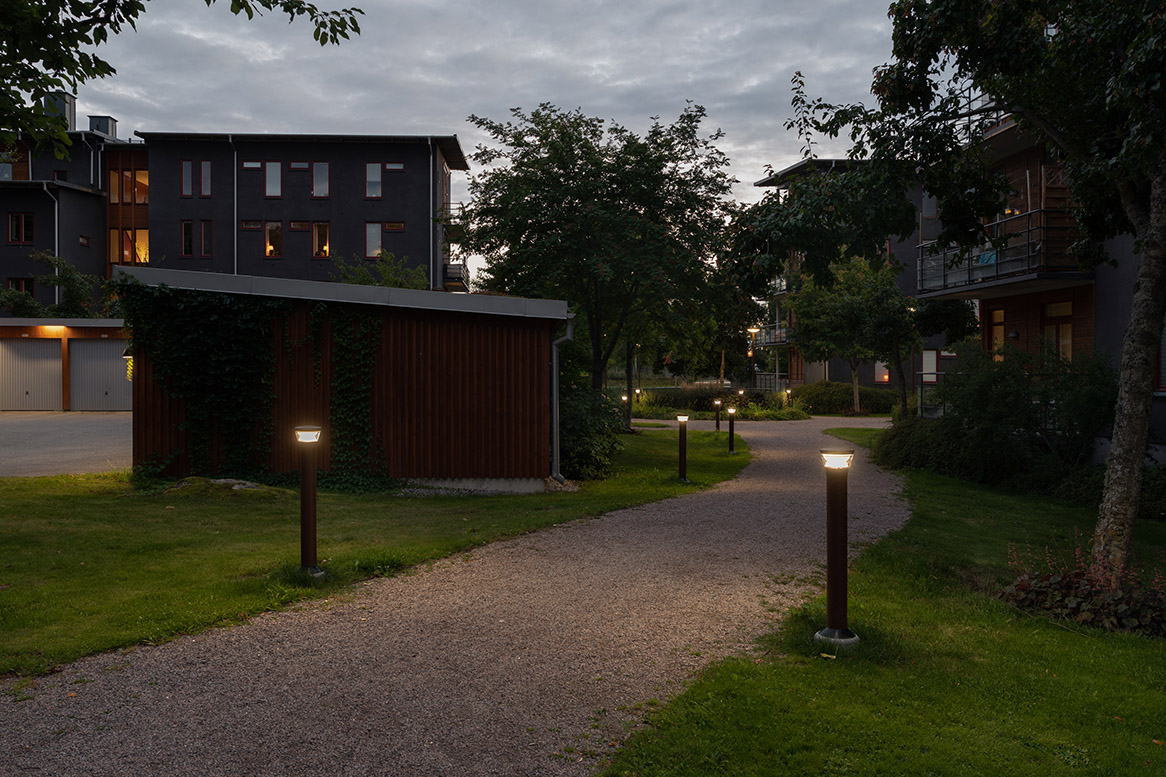

skypullert_oerebro_1166_1

Focus Bollard, corten brown, residential area in Örebro, Sweden

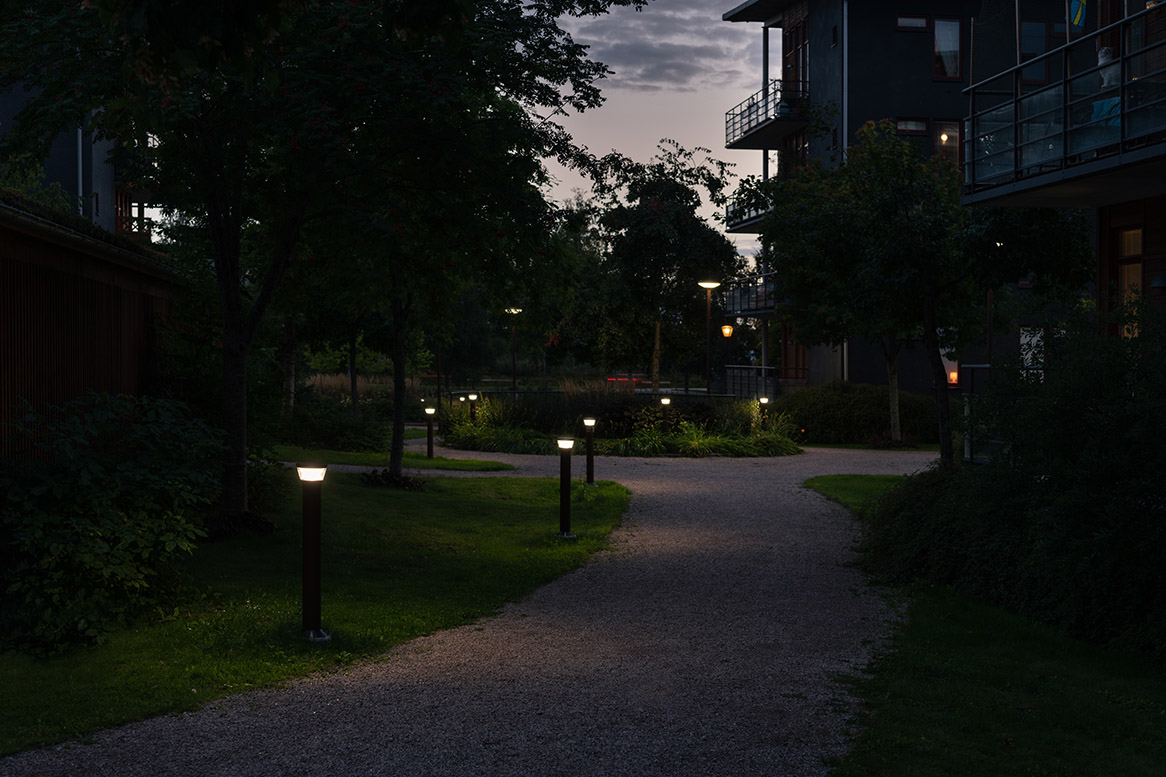

skypullert_oerebro_1166_2

Focus Bollard and Space, corten brown, residential area in Örebro, Sweden

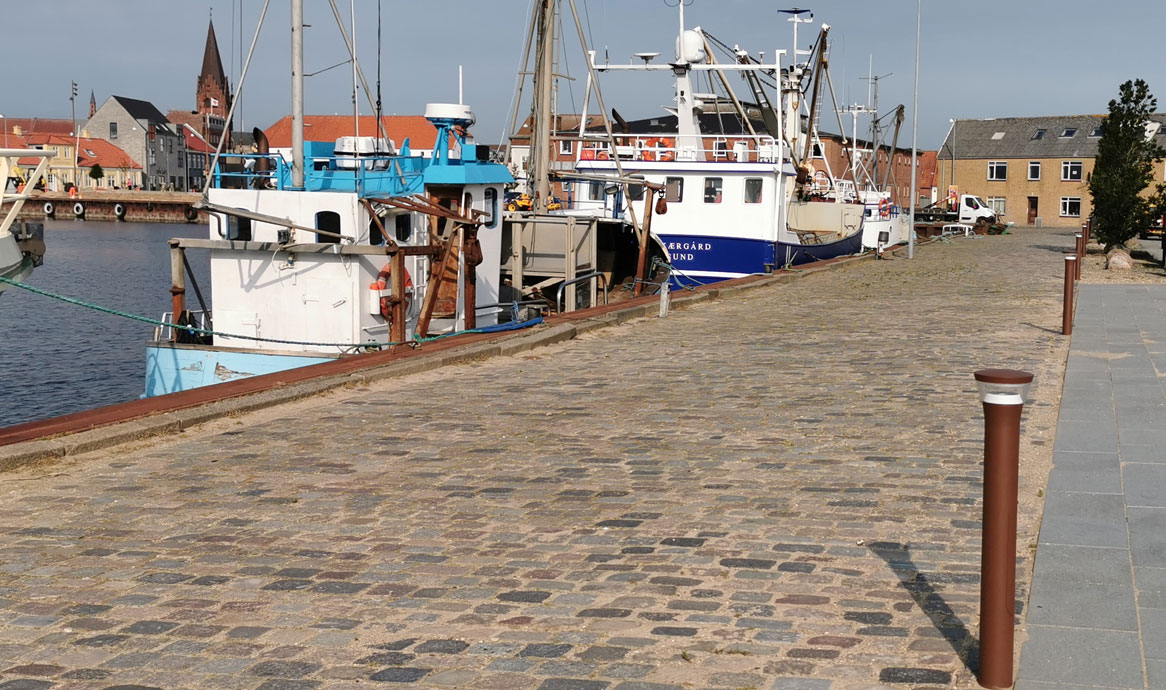

skypullert_morsoe1_1166

Focus Bollard, corten brown, at the harbour in Nykøbing, Morsø Kommune

skypullert_morsoe2_1166

Focus Bollard, corten brown, at the harbour in Nykøbing, Morsø Kommune

skypullert_tampere_1166

Focus Bollard, graphite grey, Tampere, Finland

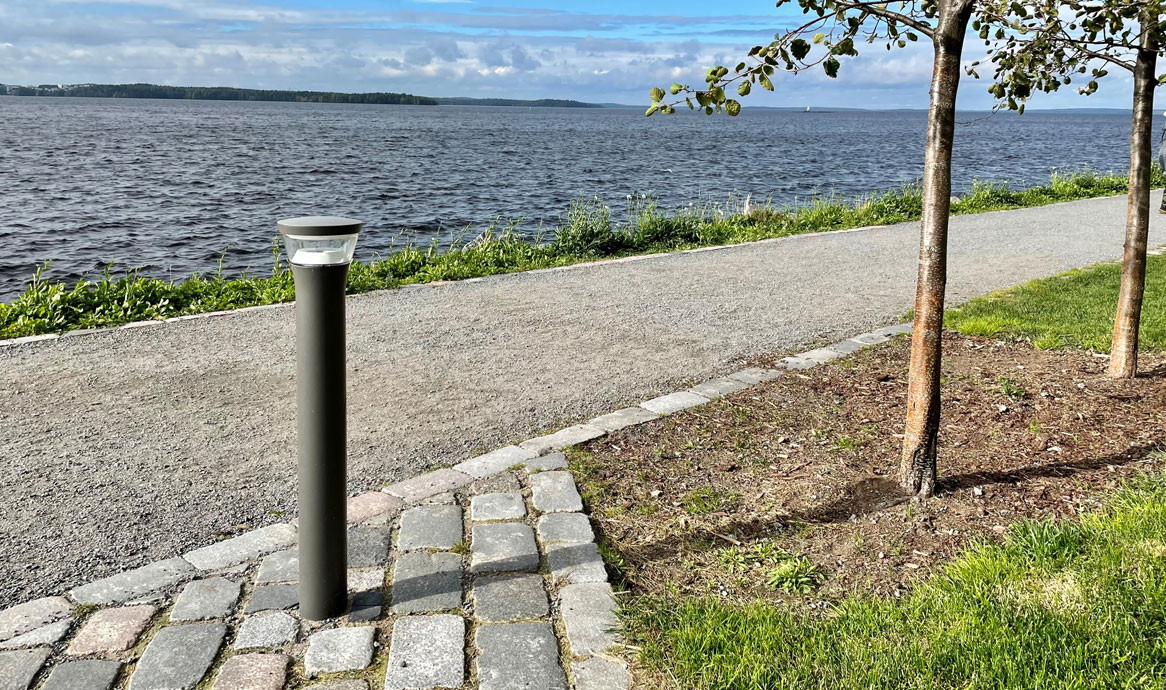

skypullert_tampere_1166_1

Focus Bollard, graphite grey, Tampere, Finland

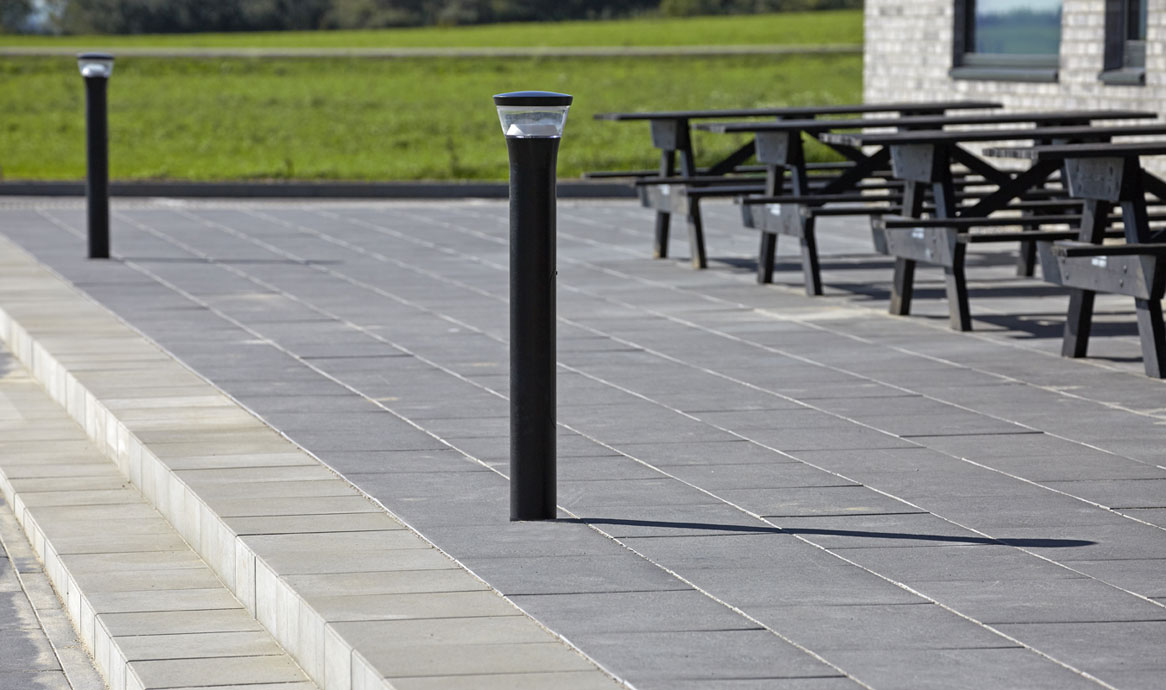

skypullert_delta8_1166_2

Focus Bollard, black, Delta 8 Business Park, Hinnerup.

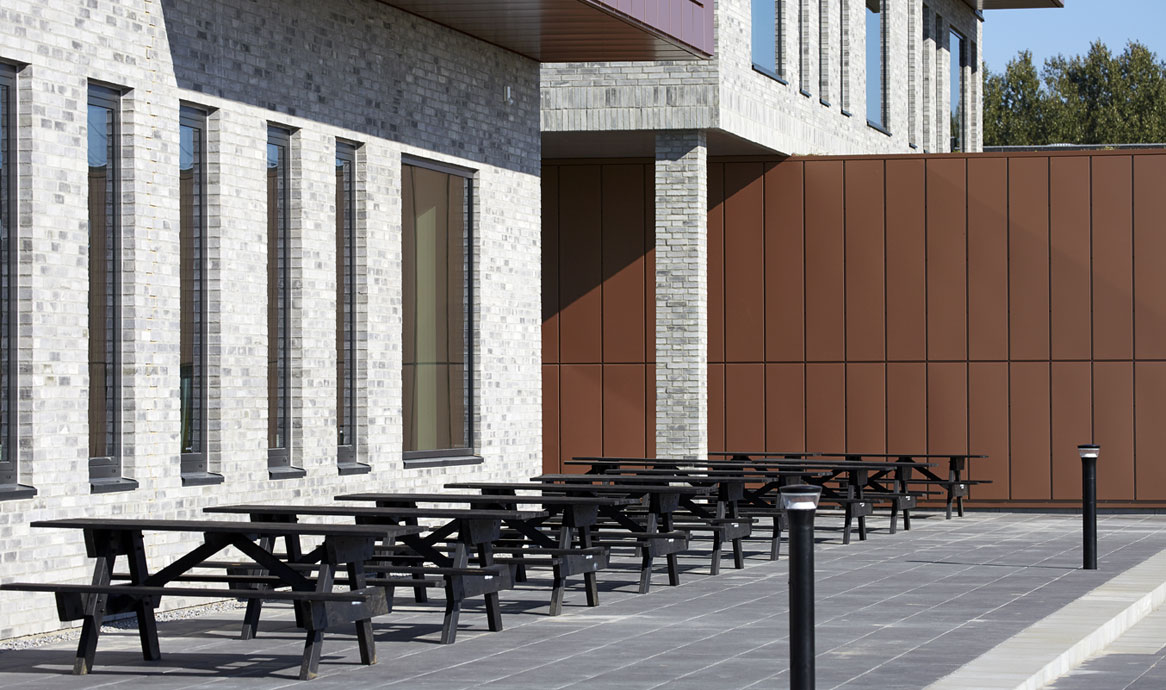

skypullert_delta8_1166_1

Focus Bollard, black, Delta 8 Business Park, Hinnerup.

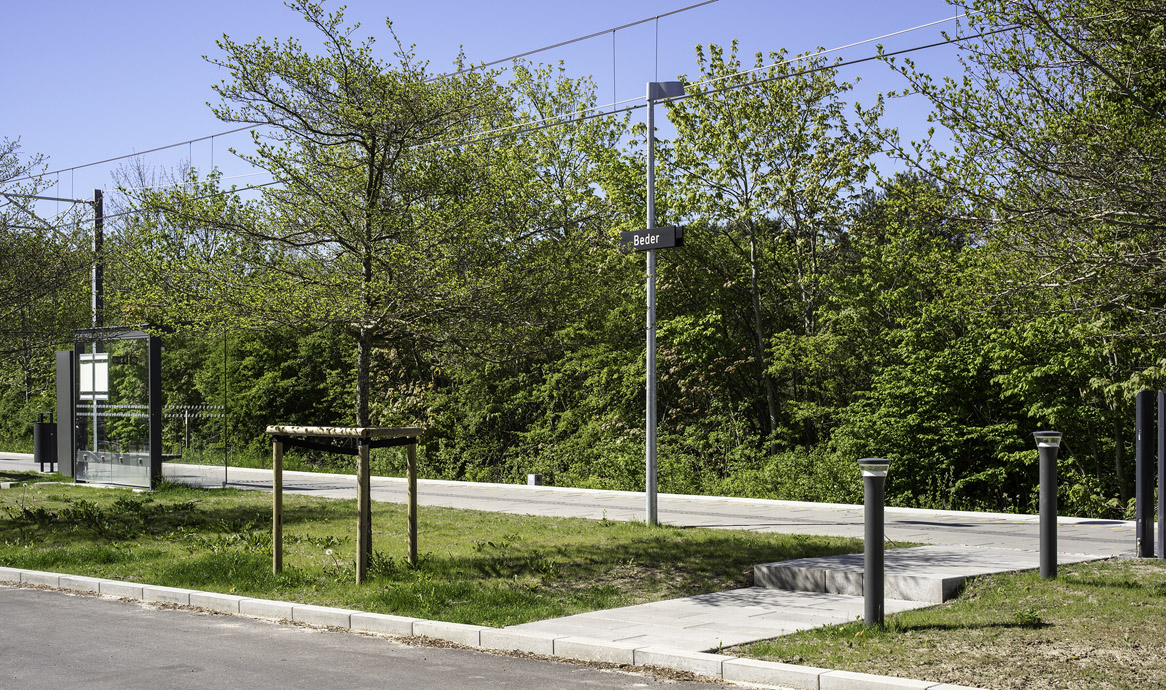

skypullert-beder_1166

Focus Bollard and Sky Park are widely used at the Aarhus Light Rail stations - here with Nyx 330 at Beder Station.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

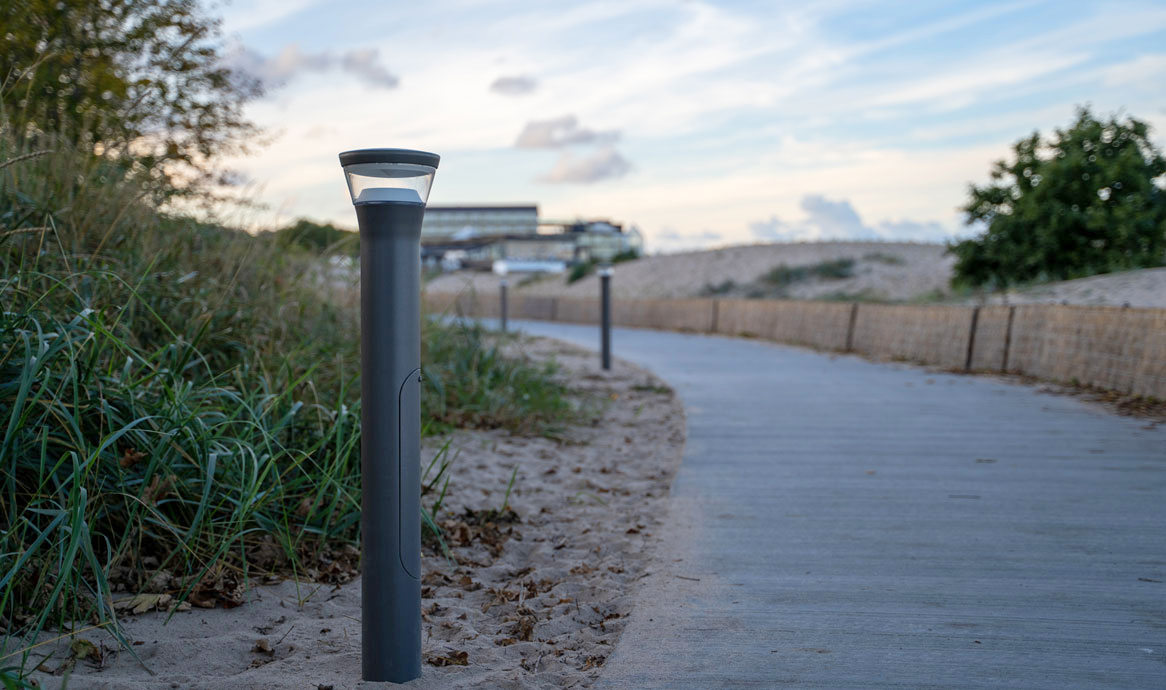

skyp_helsingor_10_1166_ny

Focus Bollard, graphite grey, residential area at the waterfront in Helsingor.

skyp_helsingor_12_1166_ny

Architema Architects have designed 24 timber houses at the Helsingor Waterfront. Lighting in terrain: Focus Bollard

skyp_nyborg_21577_1166

Focus Bollard, black, Strandhøjen, Nyborg. Photo: Kirstine Mengel

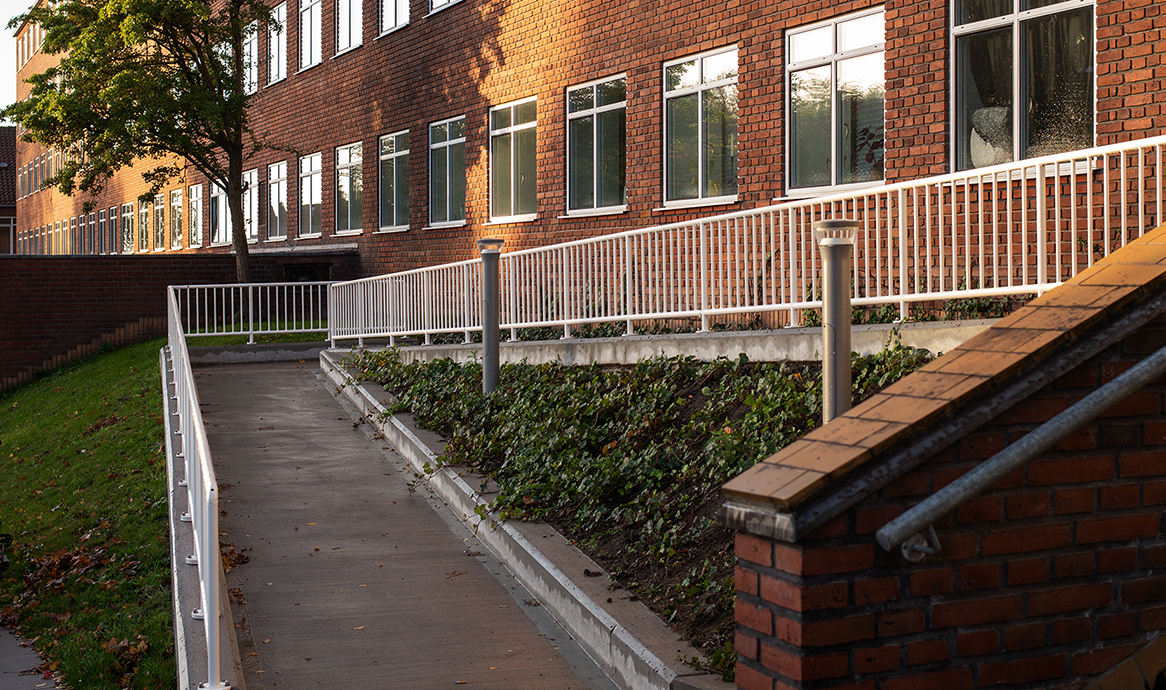

skypullert_studieboliger_1166_1

Focus Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)

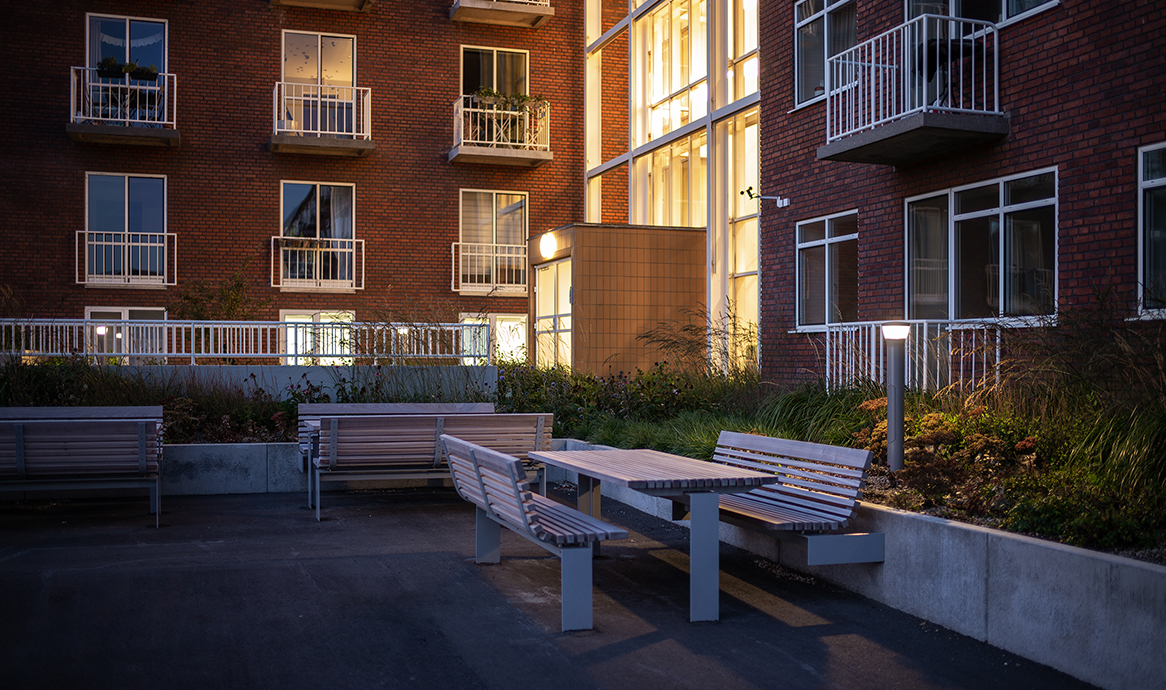

skypullert_studieboliger_1166_2

Focus Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)

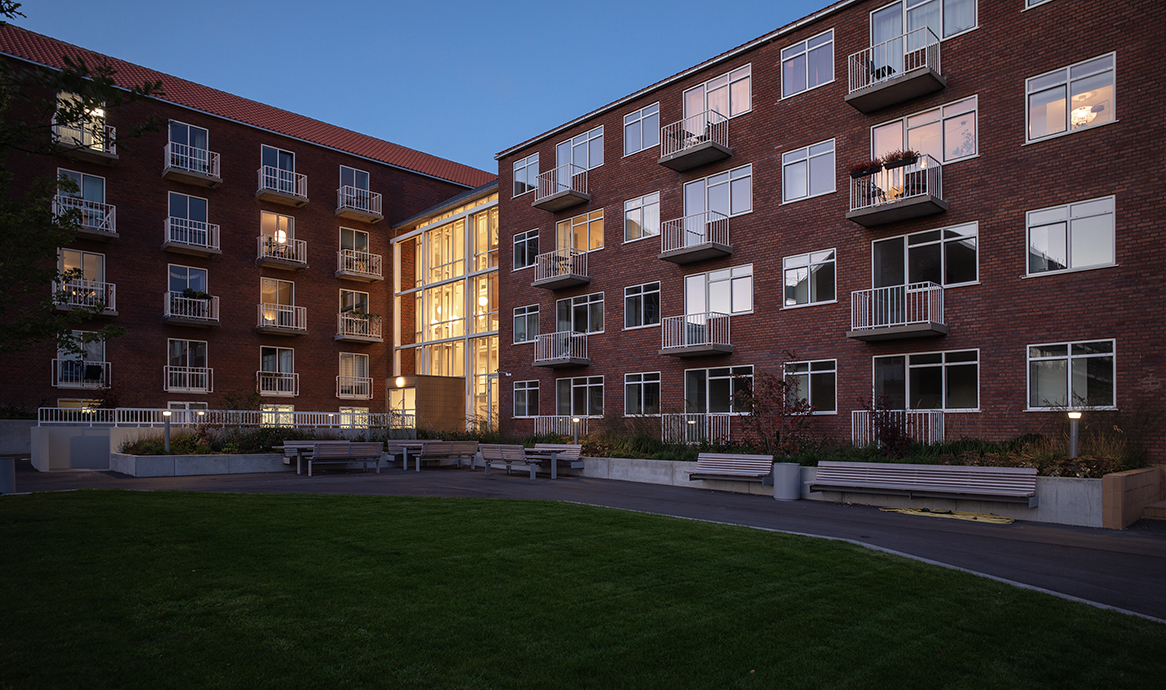

skypullert_studieboliger_1166_3

Focus Bollard at the former Kommunehospital in Aarhus. Today it is students' housing (AART Architects)
