TURN SPOT Wide

Turn is a series of sleek cylindrical spotlights that can rotate and adjust to create various effects and highlight architecture.


Specifications

TURN SPOT Wide

skitse_turn-spot-us_web_uden-ledning

Luminaire

TURN SPOT
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel
RAL by your choice
Shade Clear glass with silked edg; Honeycomb filter optiona
Mounting Post top/pipe: Ø3 in, Ø2,4 in with adaptor, Ø2.4-Ø3.5 in, Ø3.5-Ø4.7 inch
Connection In the post, 18 ft SJTW5xAWG18, is included
Classification cULus; Wet location; IP65; class I; IK8
Corrosion class C4, C5 optional
Weight 13 lbs
Wind sweeping area 0,61 ft²

LED

LED type Bridgelux COB
Operational life min 100,000 hours at ta max 77°F (25°C), L90B10
Color temperature 2700, 3000, or 4000 Kelvin
Color rendering min 80, typically 85 CRI
Color accuracy 3 steps SDCM

Driver

Driver Inventronic 30W 55-1050mA
Inrush current @120V; max 21,4 A (10% after 280 µs)
@277V; max 51,5 A (10% after 274 µs)
Nominal voltage, AC 100-277 Vac
Operational input voltage, AC 90-305 Vac
Nominal voltage, DC 127-300 Vdc
Nominal frequency range 50-60 Hz
Surge protection L/N-GND: 6 k; L-N: 4 kV
Operational life min. 100,000 hours
Dimming/control 0-10V
Other control options /

Media & downloads

turn_3042_1166

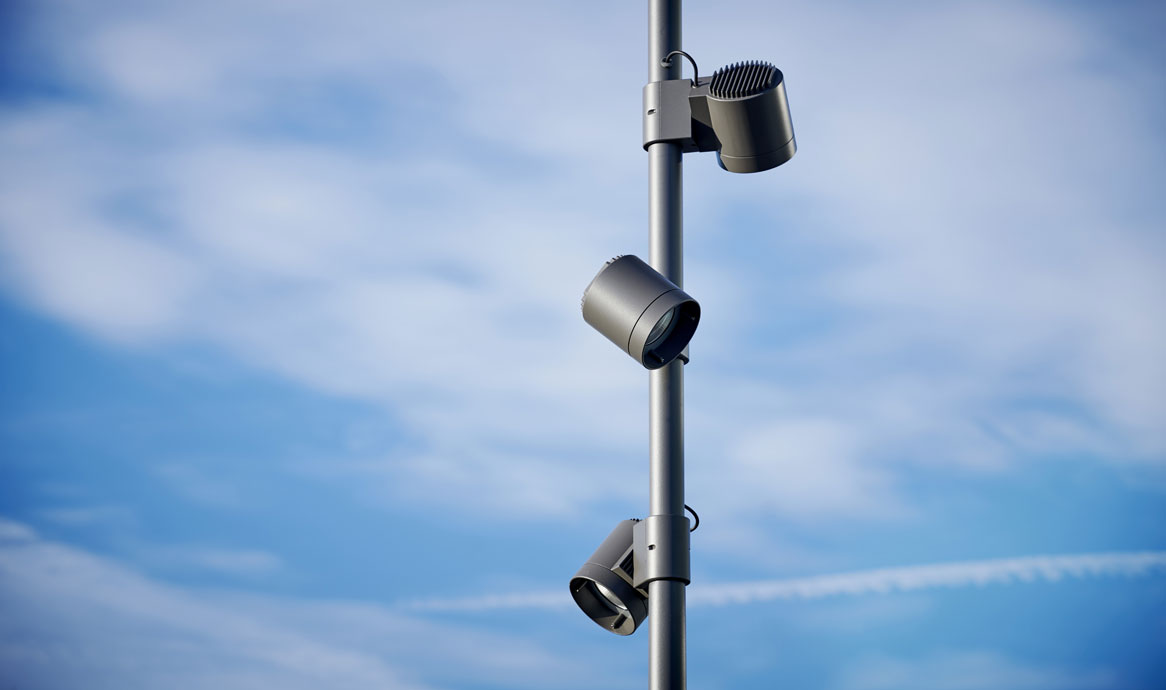

Turn Spot x 3, graphite grey

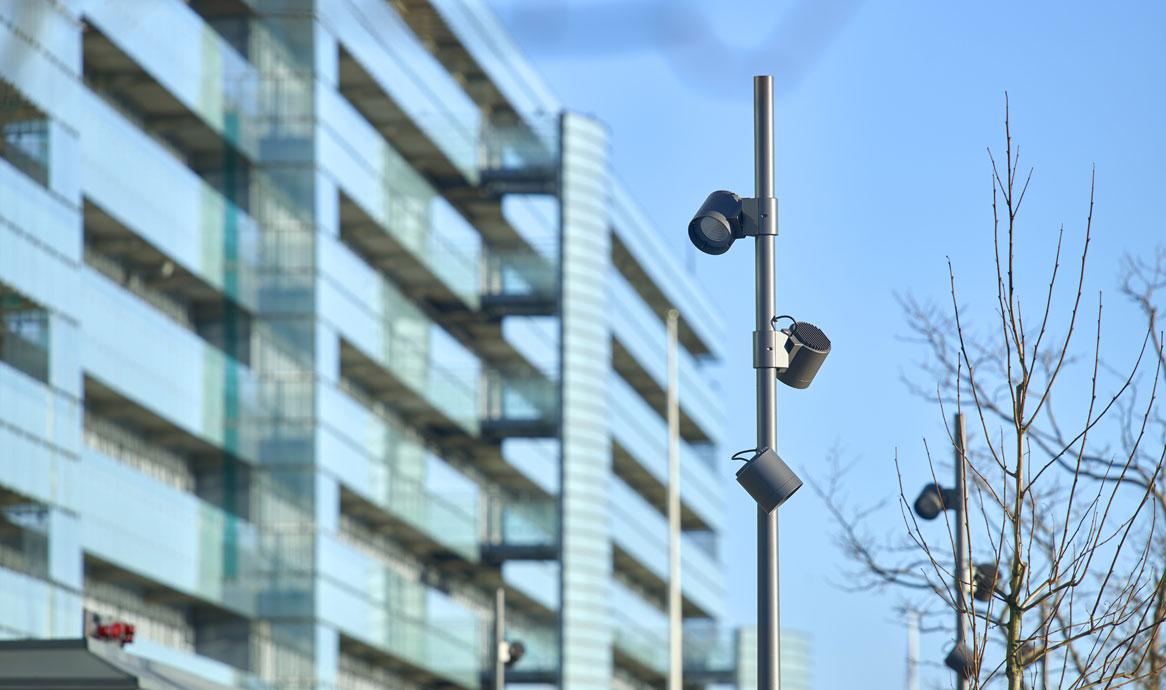

turn_2954_1166

Turn Spot x 3, graphite grey, Company House Center South, Copenhagen. DesignGroup Architects

Umbraco.Cms.Core.Models.Link More images

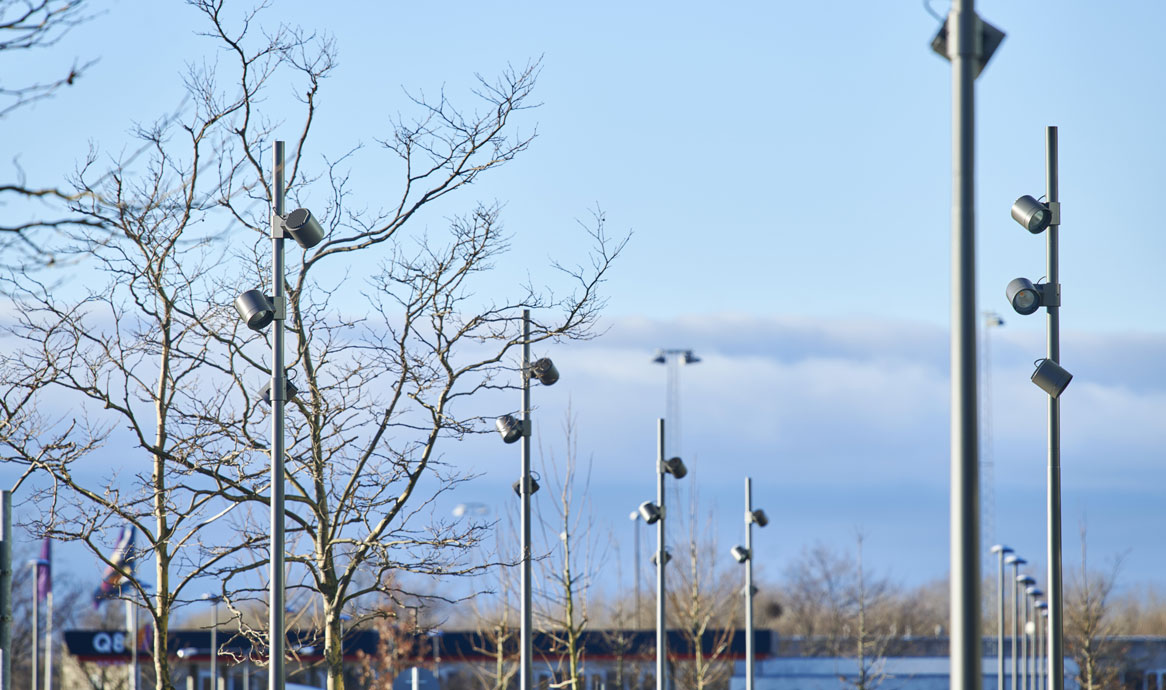

turn_q8_2911_1166

Turn Spot x 3, graphite grey, Center South, Copenhagen

Umbraco.Cms.Core.Models.Link More images

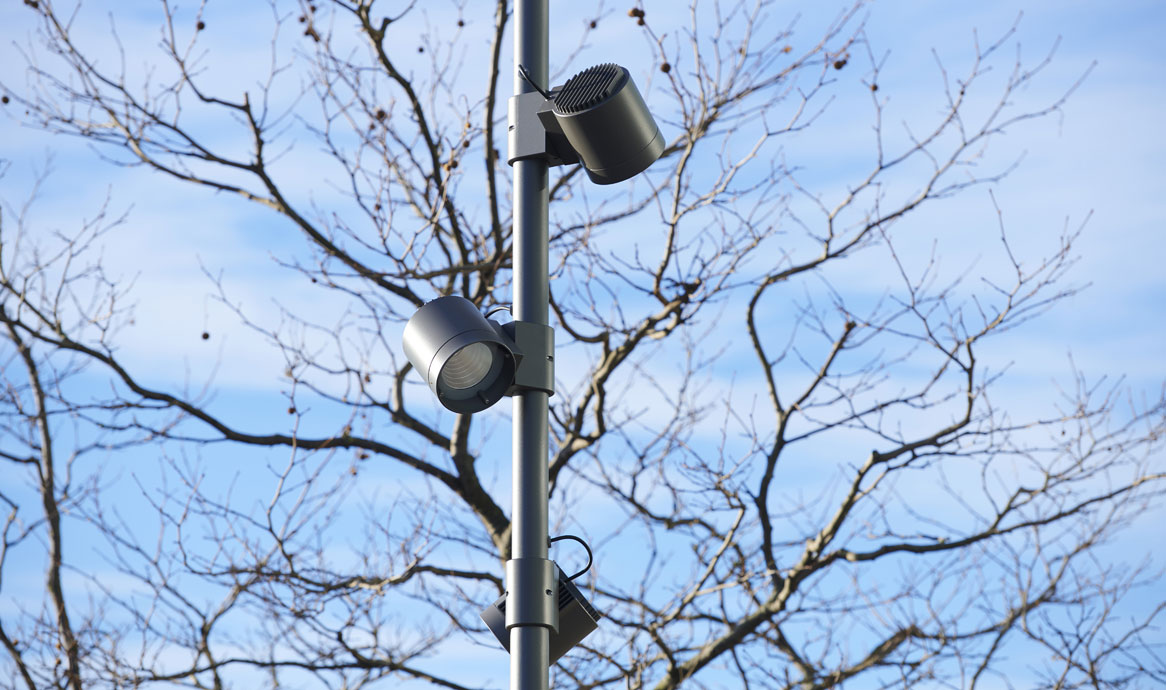

turn_3017_1166

Turn Spot x 3, graphite grey

turn_afstand_3057_1166

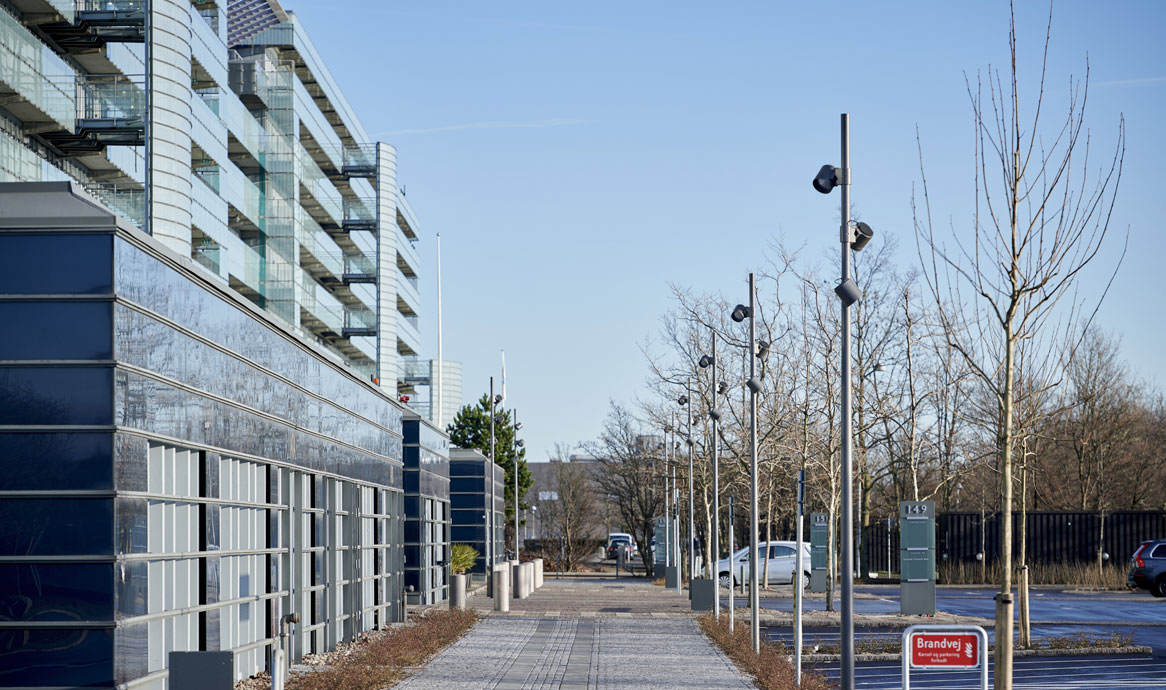

Turn Spot x 3, graphite grey, Company House Center South, Copenhagen. DesignGroup Architects

Umbraco.Cms.Core.Models.Link More images

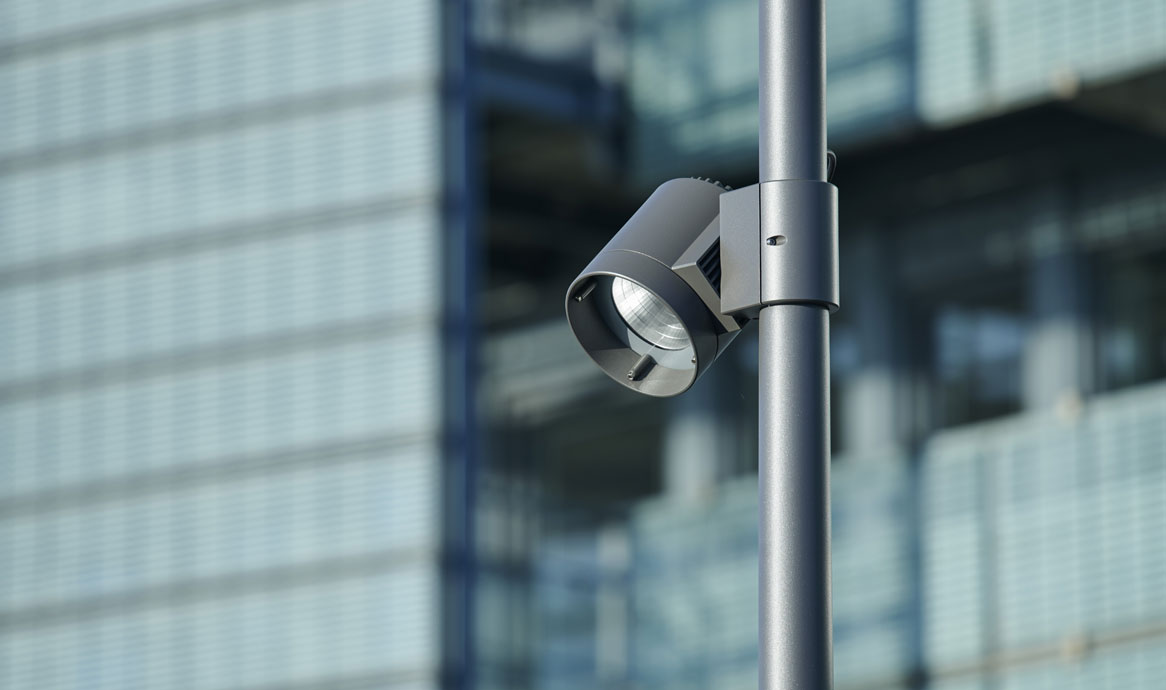

turnx1_2926_1166

Turn Spot, graphite grey

turn_sydhavnen_3607_1166

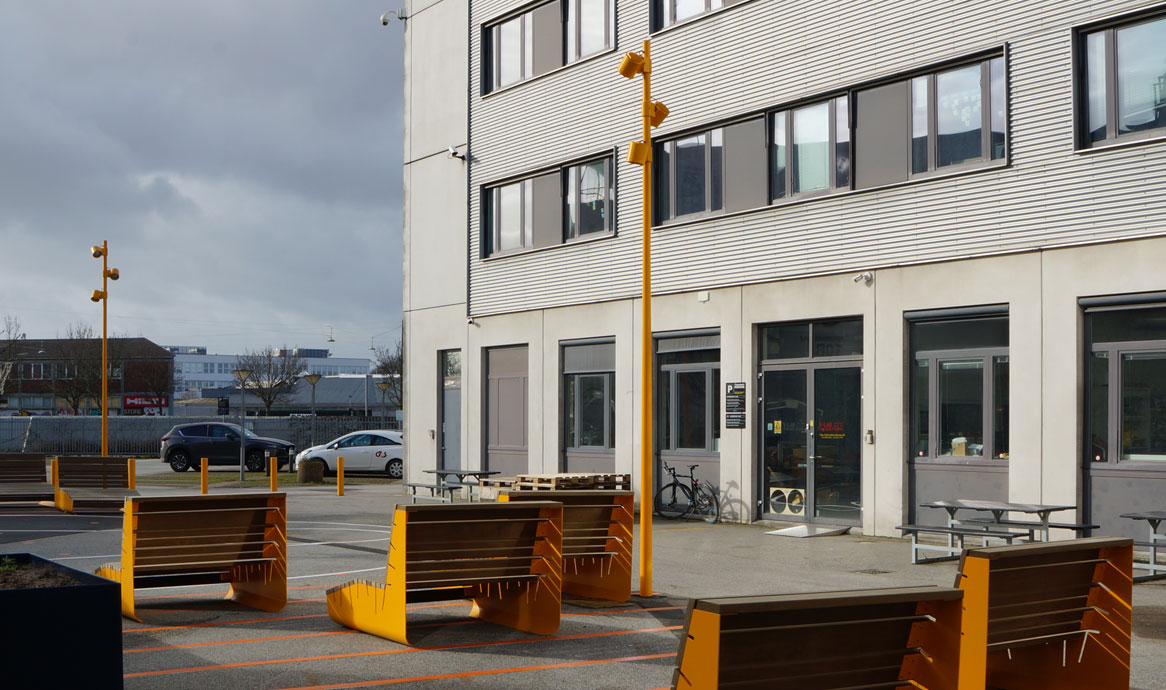

Turn Spot in the outdoor area of the AAU-CPH university. Architects: PLAN+LANDSKAB Mangor & Nagel

Umbraco.Cms.Core.Models.Link Video with Turn projects

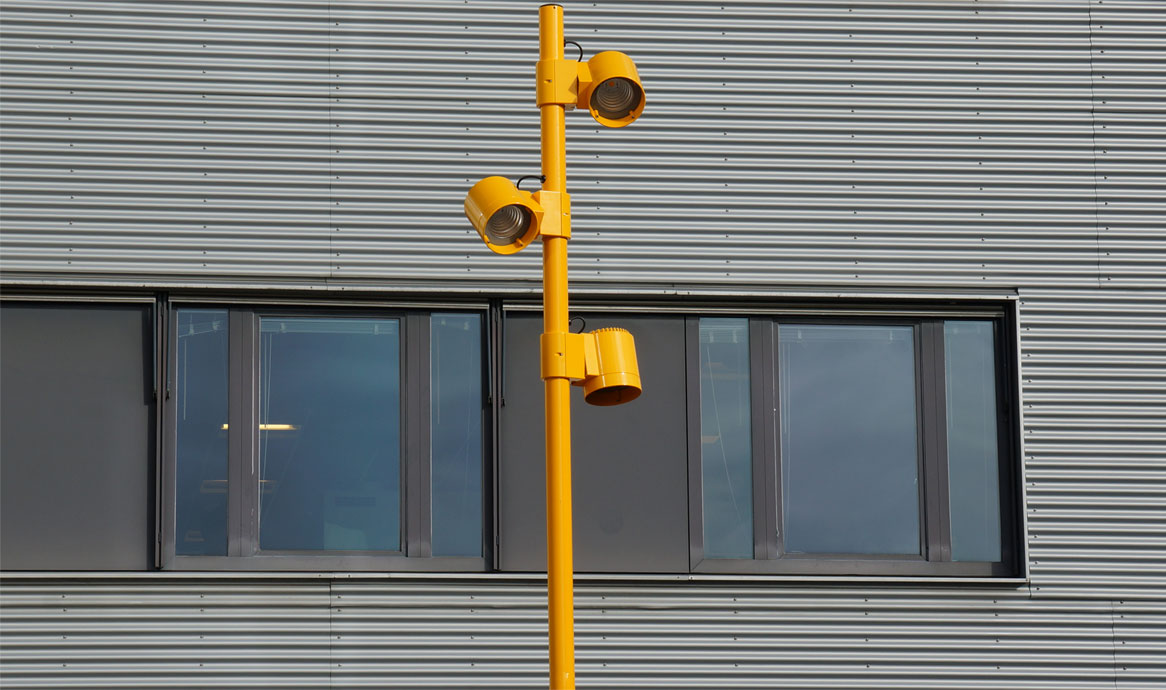

turn_sydhavnen_close_1166

Mangor & Nagel PLAN+LANDSKAB using strong colours in the city space.

Umbraco.Cms.Core.Models.Link Video with Turn projects
turnx3_soeborg_6159_1166

Turn Spot on conical standard pole, Søborg Market Place, Gladsaxe municipality

Umbraco.Cms.Core.Models.Link More images of Turn

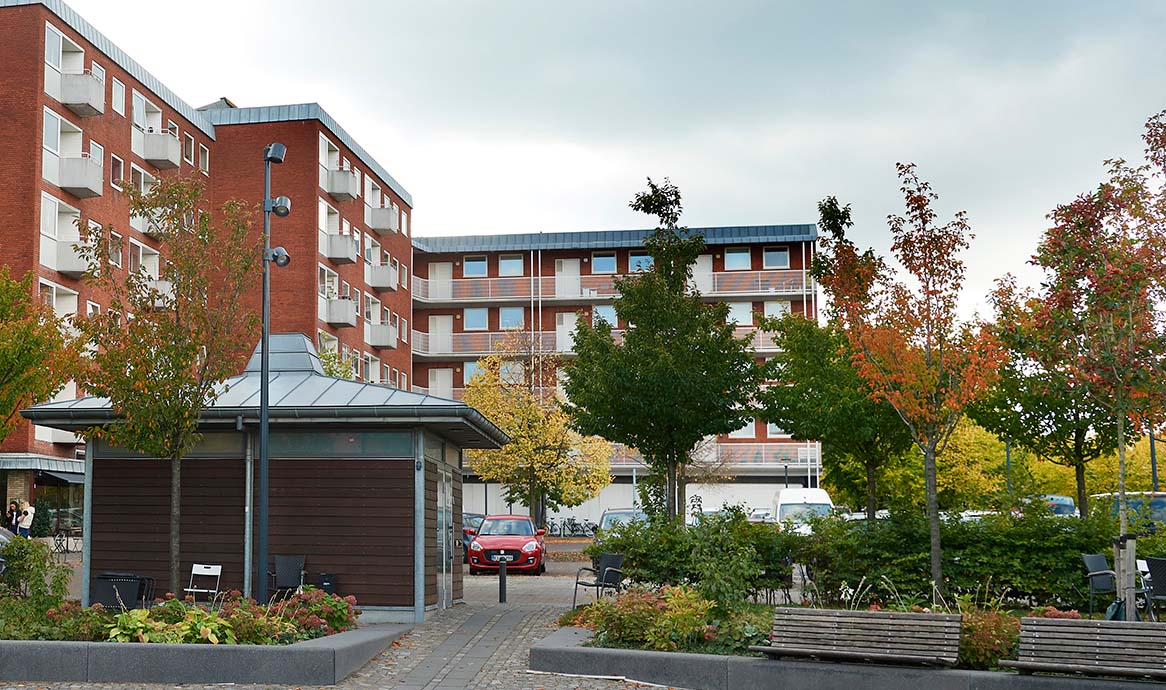

turnx3_soeborg_6200_1166

Turn Spot on conical standard pole, Søborg Market Place, Gladsaxe municipality

Umbraco.Cms.Core.Models.Link More images of Turn

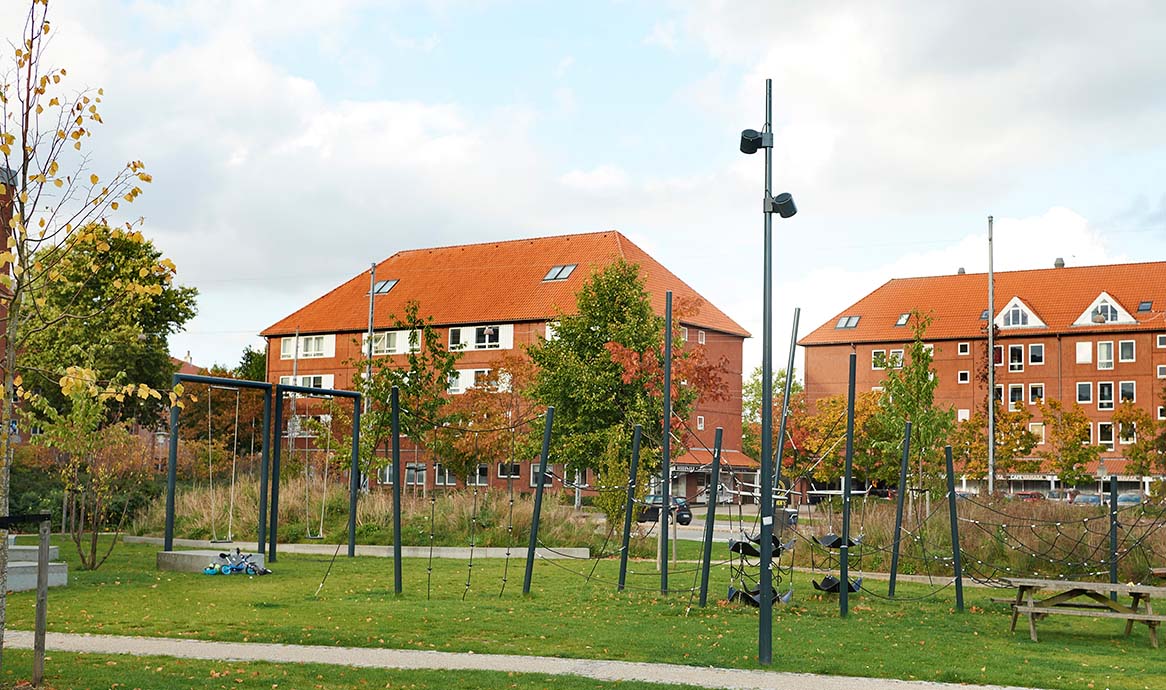

turnx2_soeborg_6295_1166

Turn Spot on conical standard pole, Søborg Market Place, Gladsaxe municipality

Umbraco.Cms.Core.Models.Link More images of Turn
turn_5m-lamp_1166_ny

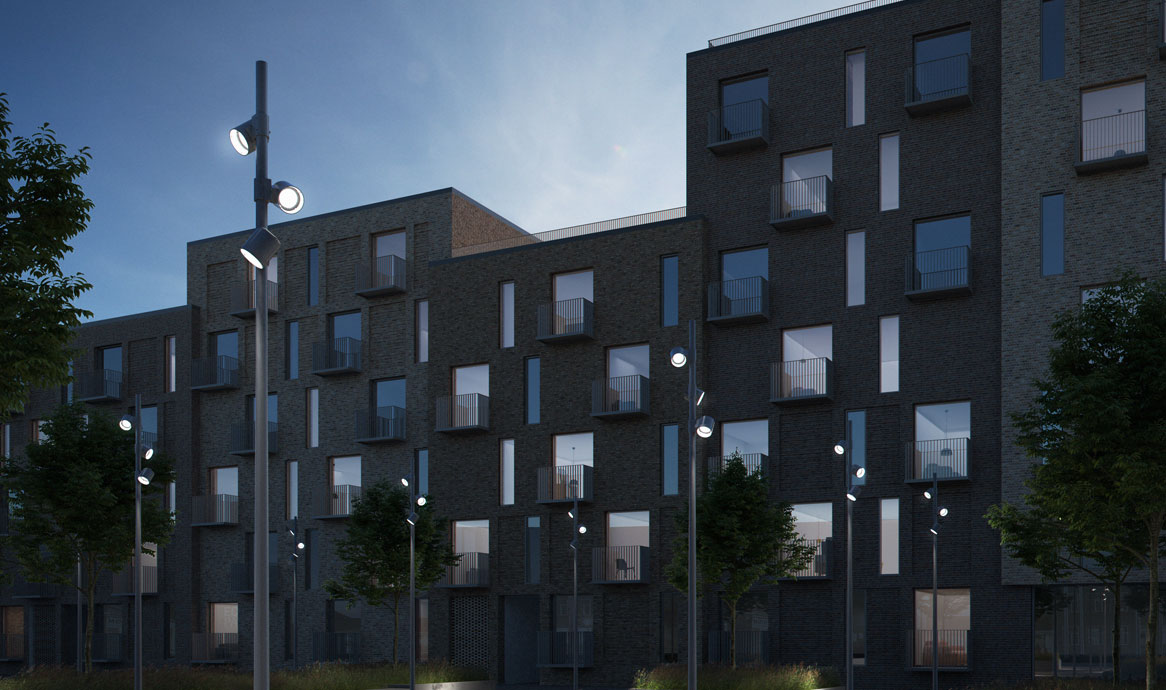

Three spots at 5.5 meter post, image by Friis & Moltke Design

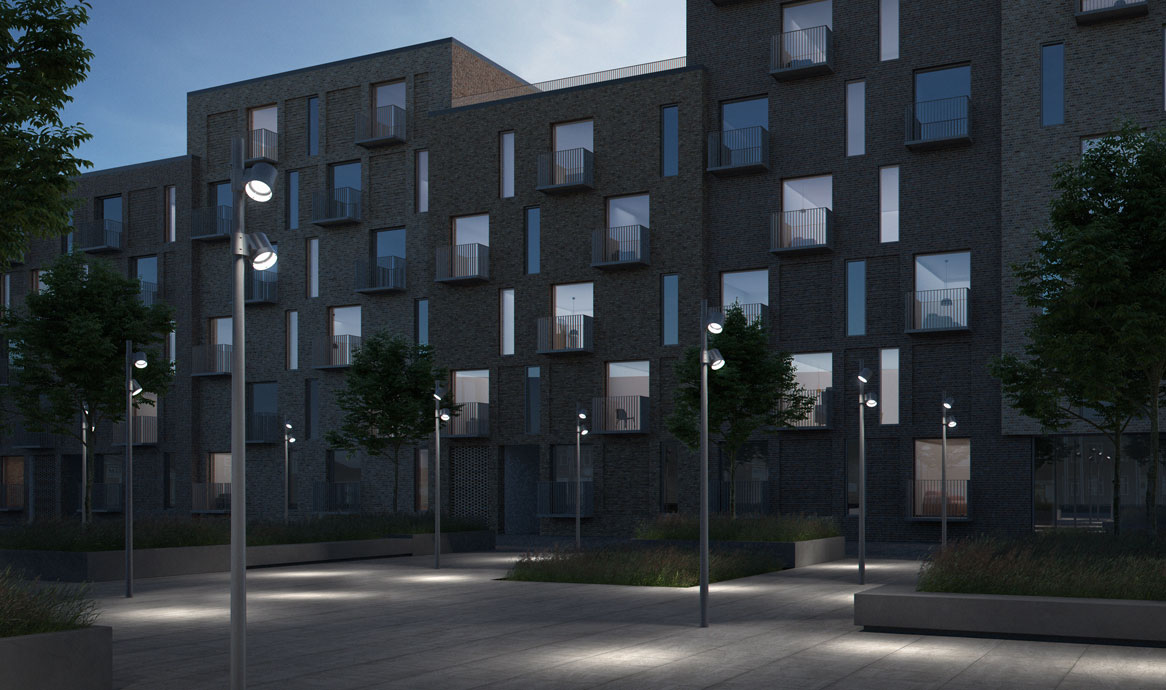

turn_3m-lamp_1166

Two spots at 4 meter post, image by Friis & Moltke Design
